NIKOMAX NKL 4355C-IB F/FTP cable, 4 pairs, Cat.6A, 23 AWG, Indoor, LSZH, 500 M



A wide range of 4th series cables will solve most of the problems associated with building networks, and while an excellent performance will guarantee a trouble-free operation for the whole life of the network. They are used to build a certified NIKOMAX SCS with a warranty period of up to 15 years. Indoor cable lineup includes shielded (F/FTP, S/FTP, U/FTP, F/UTP) and unshielded (U/UTP) models of categores from 5e to 7A with PVC or LSZH shells. Supplied in easy-pull-out boxes with an increased diameter insert for unwinding or on plywood drums (for heavy models). NKL 4355C-OR Category 6A cable is shielded F/FTP, and designed for indoor cabling. The outer jacket is made of low smoke and non-combustible LSZH.

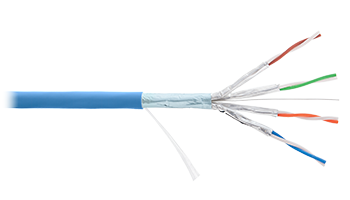

F/FTP (twisted pair) shielded cable Cat.6a 500 MHz. AWG 23 - 4x2x23 / 1. 4th series. Dca-s2, d2, a1. Copper conductor with size 0.56mm / 0.25mm2. 100% screen of aluminum foil and polyester foil. Copper grounding conductor. LSZH insulation with blue color, outer diameter 7.3mm. Impedance 100Ω. Operating temperature -20o ~ 60oC. Component warranty 5 years, system warranty 25 years. Reel 500m. Price per meter.



Weight c.a. 22 Kgr
