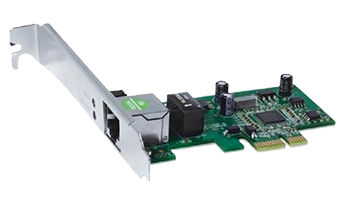

Netis AD1103 Gigabit Ethernet PCI-E Adapter, 10/100/1000 Mbps
The netis AD1103 is a 10/100/1000Mbps, PCI-E interface adapter, which reduces CPU loading using bus master architecture. It also supports WOL and RPL/PXE BOOT-ROM. With single UTP/STP and the Auto-Negotiation (Nway) function, the adapter can auto-negotiate 10Mbps, 100Mbps or 1000Mbps speed, and half or full duplex mode with its link partner (a hub, for example). Featured with a wide compatibility with the major operating systems, it provides a good choice for you to upgrade the network
Hardware
| Standard |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-T |
| Interface |
32-bit PCI-E 1 * 10/100/1000Mbps RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
| LED | LNT/ACT, 1000M |
| Data Transmission Rate |
10/100/1000Mbps(Half-duplex) 20/200/2000Mbps(Full-duplex) |
| WOL | Supported |
| RPL/PXE BOOT-ROM | Supported |
| Network Drivers |
Windows XP (32/64bits), Windows Vista (64/86bits), Windows 7 (64/86bits), Windows 8 (64/86bits), Windows 8.1 (64/86bits), Win 10(32/64bits) MAC 10.4/10.5/10.6/10.7 Linux as Ubuntu 14.04/12.04/11.04 |
| Others | |
| Certification | FCC, CE |
| Environment |
Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Package |
1 * AD1103 1 * Quick Installation Guide 1 * Low Profile Bracket 1 * Driver CD |
