Chipset    Ingenic T20
Sensor    SOI H42
General Function    Real-time remote review，video playback，bi-lateral talk, motion detection，multiple recording available
Resolution    1080P    -2Mbp
Frame rate    H.264/25FPS
Min. Illumination    0.02 Lux@(F2.0,AGC ON),0 Lux with IR
Lens
Lens    3.6mm
Horizontal visual angle    72°

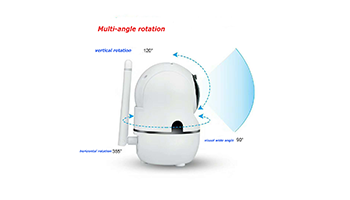

Pan&Tilt Angle
Horizontal     0°-355°
Vertical     -20°-90°
General Parameter
Shutter speed    Automatic adjusted
Denoise    3D
Vedio Standard    PAL
IR LEDS    6 pcs high efficient IR leds
Network     Wi-Fi （support IEEE802.11b/g wireless protocol）
Night Vision    IR-CUT auto change , 5m-10m（Depend on different environment ）
Audio    "Internal installed omni-directional denoise microphone and loudspeaker，support bi-lateral audio&video transmission,
ADPCM audio compression standard, byte rate self-adjusting,"
Network Protocol    TCP/IP、UDP、RTSP、HTTP、DDNS、DHCP、FTP、NTP
Alarm    Support picture push
ONVIF    Support ONVIF Protocol，support NVR connection
Storage    support Cloud storage , support Micro SD card（max 128G）
Power    DC5V /1.6A
N/W    0.18kg
Working Temp    -10℃ ~ + 50℃
Working Humidity    10%  ~ 90%
Product Feature
Main Features    "1. Using new generation leading low-power consumption chipset T20
2. Professional imaging
