Full Technical Description

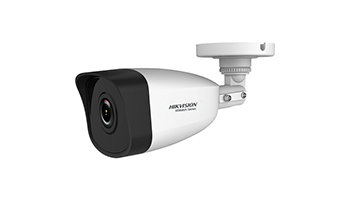

The Hikvision HiWatch HWI-B121H(C) provides clear Full HD video for homes, shops, offices, warehouses, and small commercial surveillance systems. Its 2MP progressive-scan CMOS sensor captures images at 1920 × 1080 resolution, while the 2.8mm wide-angle lens covers a broad monitoring area.
Key Features
- 2MP Full HD resolution: 1920 × 1080 video at up to 25/30 fps, depending on the video setting.
- 2.8mm fixed lens: Wide-angle coverage for entrances, corridors, shops, and outdoor areas.
- Infrared night vision: Smart IR illumination up to 20 metres according to the manufacturer's datasheet.
- H.265+ compression: Reduces bandwidth and storage requirements.
- PoE support: Simplifies installation with a single network cable for power and data.
- Digital WDR: Helps balance scenes with different lighting levels.
- 3D DNR: Reduces image noise, particularly in low-light conditions.
- Motion detection: Supports motion events and exception notifications.
- IP67 protection: Designed to resist dust and water for outdoor installation.
- Remote monitoring: Supports compatible Hikvision software and network protocols.
The camera is suitable for installations requiring affordable IP surveillance, remote viewing, and straightforward integration with a compatible network video recorder (NVR).

Technical Specifications
Specification    Details
Brand    Hikvision HiWatch
Model    HWI-B121H(C)
Camera type    Fixed bullet IP camera
Image sensor    1/2.9" Progressive Scan CMOS
Maximum resolution    1920 × 1080 (2MP)
Main stream frame rate    Up to 25 fps (50Hz) / 30 fps (60Hz)
Lens    Fixed 2.8mm or 4mm, depending on version
Horizontal field of view    94° with 2.8mm lens
Minimum illumination    0.01 Lux at F2.2; 0 Lux with IR
Night vision    Smart IR, up to 20m
IR wavelength    850nm
Video compression    H.265+, H.265, H.264+, H.264
Image enhancement    Digital WDR, BLC, HLC, 3D DNR
Network interface    1 × RJ45, 10/100 Mbps
Network protocols    TCP/IP, HTTP, RTSP, DHCP, DNS, NTP, UDP and others
Compatibility    Hikvision software, ISAPI, SDK
Power supply    12V DC or PoE IEEE 802.3af
Maximum power consumption    5W via 12V DC; up to 6.5W via PoE, depending on datasheet version
Protection rating    IP67
Housing    Plastic
Dimensions    138.8 × 60.9 × 57.9mm
Operating temperature    -30°C to +60°C
Installation    Indoor / outdoor
