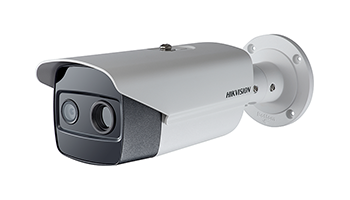

HIKVISION DS-2TD2617-(3/6/10)/PA Thermal & Optical Bi-spectrum Network Bullet Camera PoE



Combined thermal imaging / daytime IP camera with different modes: combined (bi-spectrum image fusion) / Picture-in-picture / standalone (Image switching); Thermal imaging camera: uncooled VOx sensor 160x120 @ 25fps (output resolution 320x240); sensitivity (NETD) <40mk; pixel interval 17 µm; optional 3/6/10 mm lenses (horizontal viewing angle: 50 ° / 25 ° / 16 °); possibility for detection of people at a distance of up to 91/182/285 m, cars up to 280/559/875 m; intelligent functions / detection: line crossing, zone entry / exit, temperature detection (± 8 ° С), fire detection; AGC; DDE (Digital Detail Enhacement); 3D DNR; Day camera: 1 / 2.7 "Progressive Scan CMOS with high sensitivity; 4.0 Megapixels (2688 × 1520 @ 25 fps); 0.0089Lux (Color) /0.0018Lux (B / W); 4/8 mm lens (horizontal viewing) angle 84 ° / 39 °) intelligent IR lighting up to 40m; 120dB WDR; 3D DNR filter; mechanical IR filter; H.264 + / MJPEG dual stream compression; audio input / output; 2 alarm inputs / 2 outputs; analog BNC output ; micro SDXC card slot (up to 128GB); -40 ~ + 65C; for outdoor installation (IP66); built-in lightning protection; 12Vdc / PoE 8W; included mounting base.



Weight Approx. 1.76 kg (3.88 lb)
