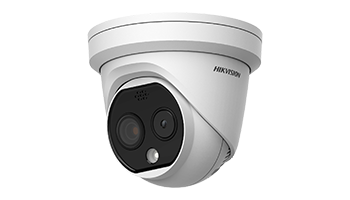

HIKVISION DS-2TD1217-(2/3/6)/QA Thermal & Optical Bi-Spectrum Network Turret Camera



160 × 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)

High accuracy temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F) ± 8 °C (±14.4 °F)

Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR



Combined thermal imaging/daytime IP camera with different modes: combined (bi-spectrum image fusion)/Picture-in-picture/independent (Image switching); Thermal imaging camera: uncooled VOx sensor 160x120@25 cad/sec (output resolution 320x240); sensitivity (NETD) <40mk; pixel interval 17 μm; optional lenses 2/3/6 mm (hor. viewing angle: 90°/50°/25°); possibility of detecting people at a distance of up to 53/91/182 m, cars up to 162/280/559 m; intelligent functions with Deep Learning algorithm/detection: line crossing, zone entry/exit, temperature detection (±8°C), fire detection; built-in light and sound alarm for active prevention; AGC; DDE (Digital Detail Enhancement); 3D DNR; Day Camera: 1/2.7" Progressive Scan CMOS with high sensitivity; 4.0 Megapixel (2688×1520@25 fps); 0.0089Lux (Color)/0.0018Lux (B/W); 4/8mm lens (hor. visual angle 84°/39°); intelligent IR illumination up to 15m.; 120dB WDR; 3D DNR filter; H.265+/H.264+/MJPEG dual stream compression; audio in/out; 1 alarm in/1 out; slot for micro SDXC card (up to 256GB); -30~+60C; for outdoor mounting (IP67); built-in lightning protection; 12Vdc/PoE/8.5W
