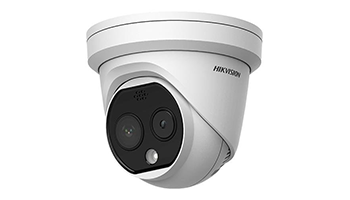

HIKVISION DS-2TD1217-(2/3/6)/PA Thermal and Optical Network Turret Camera POE



Combined thermal imaging / daytime IP camera with different modes: combined (bi-spectrum image fusion) / Picture-in-picture / standalone (Image switching); Thermal imaging camera: uncooled VOx sensor 160x120 @ 25fps (output resolution 320x240); sensitivity (NETD) <40mk; pixel interval 17 µm; optional 2/3/6 mm lenses (horizontal viewing angle: 90 ° / 50 ° / 25 °); possibility for detection of people at a distance of up to 53/91/182 m, cars up to 162/280/559 m; intelligent functions with Deep Learning algorithm / detection: line crossing, entering / exiting a zone, temperature detection (± 8 ° С), fire detection; AGC; DDE (Digital Detail Enhacement); 3D DNR; Day camera: 1 / 2.7 "Progressive Scan CMOS with high sensitivity; 4.0 Megapixels (2688 × 1520 @ 25 fps); 0.0089Lux (Color) /0.0018Lux (B / W); 4/8 mm lens (horizontal viewing) angle 84 ° / 39 °); intelligent IR lighting up to 15m .; 120dB WDR; 3D DNR filter; mechanical IR filter; H.265 + / H.264 + / MJPEG dual stream compression; audio input / output; 1 alarm input / 1 output, micro SDXC card slot (up to 256GB), -30 ~ + 60C, for outdoor installation (IP67), built-in lightning protection, 12Vdc / PoE / 8.5W



Hikvision DS-2TD1217-x/PA Thermal and Optical Turret Cameras are equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by Hikvision’s deep learning technology.



Hikvision DS-2TD1217-x/PA Thermal and Optical Turret Cameras are equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by Hikvision’s deep learning technology.
