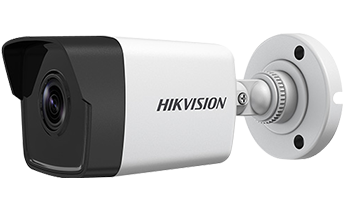

Hikvision DS-2CE17H0T-IT5F 5 MP Fixed Bullet Camera
High quality imaging with 5 MP, 2560 × 1944 resolution
3.6 mm fixed focal lens
Up to 80 m IR distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)

Camera
Image Sensor
5 MP CMOS
Max. Resolution
2560 (H) × 1944 (V)
Min. Illumination
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Day & Night
ICR
Angle Adjustment
Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Signal System
PAL/NTSC
Lens
Lens Type
3.6 mm fixed lens
Focal Length & FOV
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
M12
Image Parameters Switch
STD/HIGH-SAT
Image Settings
Brightness, Sharpness, Mirror, Smart IR
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

AHD: 5M@20fps, 4M@30fps, 4M@25fps

CVI: 4M@30fps, 4M@25fps

CVBS: PAL/NTSC

Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
DWDR/BLC/HLC/Global
Noise Reduction
Yes
White Balance
Auto/Manual
AGC
Yes

Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Material
Front Cover: Metal

Main Body: Plastic

Dimension
78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
Approx. 330 g (0.73 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication
HIKVISION-C
Language
English
Power Supply
12 VDC ± 25%
Consumption
Max. 5 W

IR Range
Up to 80 m
Approval
Protection
IP67
