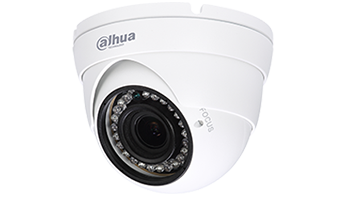

DAHUA HAC-HDW1200R-VF 2MP 1080P Water-proof IR HDCVI Dome Camera
1/2.7" 2Megapixel CMOS
25/30fps@1080P
High speed, long distance real-time transmission
Day/Night(ICR), AWB, AGC, BLC, 2DNR
2.7~12mm vari-focal lens
Max. IR LEDs length 30m, Smart IR
IP67, DC12V
Camera
| Image Sensor | 1/2.7" 2Megapixel CMOS | |
| Effective Pixels | 1920(H)×1080(V) | |
| Electronic Shutter | 1/25~1/100000s | |
| Video Frame Rate | 25/50fps@720P; 25fps@1080P | |
| Synchronization | Internal | |
| Min. Illumination | 0.02Lux/F1.4, 0Lux IR on | |
| Video Output | 1-channel BNC high definition video output/ CVBS standard definition video output (Can switch) | |
| Camera Features | ||
| Max. IR LEDs Length | 30m, Smart IR | |
| Backlight Compensation | DWDR | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D | |
| OSD Menu | Support | |
| Lens | ||
| Focal Length | 2.7~12mm | |
| Angle of View | H: 99º~37º | |
| Lens Type | Manual / Fixed Iris | |
| Mount Type | Φ14 | |
| General | ||
| Power Supply | DC12V±25% | |
| Power Consumption | Max 3.5W | |
| Working Environment | -40°C~+60°C / Less than 95%RH (no condensation) | |
| Transmission Distance | Over 500m via 75-3 coaxial cable | |
| Ingress Protection | IP67 | |
| Dimensions | Φ119mm×97.4mm | |
| Weight | 0.36kg | |
| Material | Metal | |
