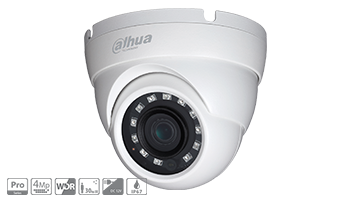

Dahua HAC-HDW2401M 3.6mm 4MP HDCVI WDR IR Eyeball Camera

64.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 28100

Βάρος: 0.400 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

HAC-HDW2401M 4MP HDCVI WDR IR Eyeball Camera

120dB True WDR, 3DNR
Max 4MP real-time
HD and SD dual-output
3.6mm fixed lens (2.8mm, 6mm optional)
Max. IR length 30m, Smart IR
IP67, DC12V

Camera
Image Sensor	1/3" CMOS
Effective Pixels	2688(H)×1520(V), 4.1MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/4s~1/100,000s

	NTSC: 1/3s~1/100,000s
Minimum Illumination	0.01Lux/F1.5, 0Lux IR on
S/N Ratio	More than 65dB
IR Distance	Up to 30m (98feet)
IR On/Off Control	Auto / Manual
IR LEDs	12
Lens
Lens Type	Fixed lens / Fixed iris
Mount Type	Board-in
Focal Length	3.6mm (2.8mm, 6mm Optional)
Max Aperture	F1.5
Angle of View	H: 79° (99.7°/48.6°)
Focus Control	N/A
Close Focus Distance	1500mm (900mm, 1700mm)
Close Focus Distance	59.06'' (35.43'', 66.93'')
Pan / Tilt / Rotation
Pan/Tilt/Rotation	Pan: 0° ~ 360°
	Tilt: 0° ~ 90°
	Rotation: 0° ~ 360°
Video
Resolution	4MP (2560×1440)
Frame Rate	25fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output	1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
Day/Night	Auto (ICR) / Manual
OSD Menu	Multi-language
BLC Mode	BLC / HLC / WDR
WDR	120dB
Gain Control	AGC
Noise Reduction	2D/3D
White Balance	Auto / Manual
Smart IR	Auto / Manual
Certifications
Certifications	CE (EN55032, EN55024, EN50130-4)
	FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
	UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface	N/A
Eelectrical
Power Supply	12V DC ±25%
Power Consumption	Max 4.1W (12V DC, IR on)
Environmental
Operating Conditions	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Operating Conditions	* Start up should be done at above -30°C (-22°F)
Storage Conditions	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance	IP67
Construction
Casing	Aluminium
Dimensions	Φ93.4mm×79.4mm (Φ3.68"×3.13")
Net Weight	0.28kg (0.62lb)
Gross Weight	0.35kg (0.77lb)

Τιμή Μονάδος: 64.90 €
Κατασκευαστής: DAHUA
Βάρος: 0.400 kg
