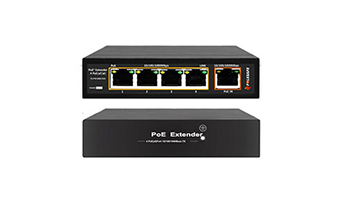

Gigabit POE port switch / extender powered by POE. 4x 10/100 / 1000Base-TX POE port, 1x POE Input / Uplink port 10/100/1000 Base-T. Protocols: IEEE802.3, IEEE802.3u, IEEE802.3af, IEEE802.3at, MDI / MDIX self-adaptation. Maximum power per port 15W. 60W total power, 70W maximum power input from POE Switch / Injector. Switching Capacity: 1Gbps, 448Kb Buffer, Mac table: 1K, Packet forward: 744Kpps. Diode indication. Built-in 1KV lightning protection. Operating temperature -10Co ~ 45oC. Dimensions: 115x78x27.6mm. Recommended POE injector PFT1200 or HI-POE switch.

• One PoE Input port, four PoE Output ports
• Supports PoE input power up to 70 watts
• Support PoE output power up to 60 watts
• Supplies a maximum of 15-watt or 30-watt for each port within total 60-watt PoE budget
• Bandwidth: 10/100/1000Mbps
• Input voltage: 37-57V
• Complies with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/100BASE-FX, IEEE802.3az, IEEE802.3af/at
• Easy to install and operate on walls or on the desktops
