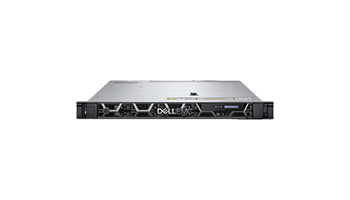

DELL EMC R450SVB00-X4309Y-H755-14 PowerEdge R450



PER450 Server,Xeon Silver 4309Y 2.8G 8C/16T 12M,3.5" Chassis x4 Hot Plug HDD,16GB RDIMM 3200MT/s,iDRAC9 Ent,480GB SSD SATA RI,PERC H755 8G,1xOCP 3.0(x16),Riser 1x16 LP,Dual PSU(1+1)600W,TPM 2.0,OCP 3.0 Slot,LOM 2x1GbE,Rails,3Y NBD



System

System type Server

Rack-Mountable system form factor

Rails accessories included

Processor

Supported Xeon Scalable Processors

Intel Xeon Silver 4309Y Processor

Internal clock frequency 2.8 GHz (up to 3.6 GHz)

Number of CPU cores 8

Threads Quantity 16

Maximum processor bus clock speed 10.4 GT/sec

Socket 4189 processor socket

Number of installed processors 1

Max. number of installed processors 2

CPU Cache Size 12 MB

Features Supports 10 nm Processors

Number of motherboards supported 1

Memory

Memory type DDR4 SDRAM

Memory form factor DIMM 288-pin

Memory Speed/Frequency 3200MHz(PC4-25600)

It offers an ECC error checking method

Amount of installed system memory 16 GB

Maximum amount of installed memory 1 TB

Total number of memory slots 16

Memory Features Registered

Controller

Plug-in-card RAID Controller:

PERC H755 8GB

Supports: Level 0, Level 1, Level 10, Level 5, Level 50, Level 6, Level 60

SAS/SATA

Remote Management Controller:

iDRAC9 Enterprise

Data storage device

Solid State Drive 480 GB, SATA III-600

Video output

Video controller - form factor Built-in

Matrox G200 video card chipset

Installed video memory 16 MB

Network specifications

Network Drive Form Factor Embedded

LAN Gigabit Ethernet

Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet

Slots provided

Number of internal jacks for 3.5-inch devices 4

Slots provided

PCI Express 4.0 x16 2

PCI Express 3.0 x4 1

Supported interfaces

USB 2.0 1 (USB 2.0 (type A))

USB 3.0 2 (USB 3.0 (type A))

VGA 2 (15-pin D-sub)

Management Port 1 (Micro USB)

LAN 2 (RJ-45)

Power

Type of power supply Power Supply - hot-plug / redundant

Power Location Internal

Input voltage AC 100-240 V

Input frequency 50/60 Hz

Number of installed power supplies 2; Redundant (1+1)

Max. number of power supplies supported 2

Maximum output power 600 W

Other features

Exterior color Black

Rackmount mounting types

Standard cabinet height 1 U

Rails accessories included

Dimensions & weight

Height 42.8 mm

Depth 734.95 mm

Width 482 mm

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 20 kg

Package Weight - Net (kg) 0 kg

Quantity per pack 1

Carton weight - Gross (kg) 20 kg

Retail Packaging Net Weight Carton 0 kg

Retail Packaging Net Weight Plastic 0 kg

Packages in Carton 1

Package type Box
