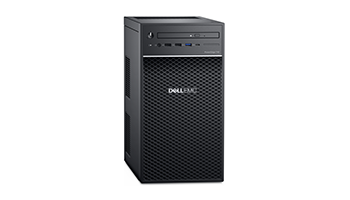

DELL EMC PET40_Q2FY22_FG0004_BTS-14 PowerEdge T40



PET40,3.5" MT Chassis x3 Cabled HDD,Soft. RAID,Xeon E-2224G 3.5G 8M 4C/4T,8GB 3200MT/s DDR4 ECC,1TB 7.2K SATA 6Gbps Entry,TPM 2.0,1x1GbE LOM(I219),DVD+/-RW,Intel AMT,1xPCIe x16,2xPCIe x4,PCI slot,2xDP,Serial,PS/2,300W PSU,9 USB+1 C-type,1Y NBD



System

System type Server

Form factor of the Mini Tower system

Processor

Intel Xeon E-2224G Processor

Internal clock frequency 3.5 GHz (up to 4.7 GHz)

Number of CPU cores 4

Threads Quantity 4

Socket 1151 processor socket

Number of installed processors 1

Max. number of installed processors 1

CPU Cache Size 8 MB

Intel C246 motherboard chipset

Features Supports 14 nm Processors

Number of motherboards supported 1

Memory

Memory type DDR4 SDRAM

Memory form factor DIMM 288-pin

Memory Speed/Frequency 3200MHz(PC4-25600)

It offers an ECC error checking method

Amount of installed system memory 8 GB

Maximum amount of installed memory 64 GB

Total number of memory slots 4

Controller

Built-in Storage Controller:

Data storage device

Hard Disk Drive 1 TB, 7200 rpm, SATA III-600

Optical data storage device

Disc drive type DVD±RW

Device Location Built-in

Network specifications

Network Drive Form Factor Embedded

Intel i219 network card chipset

LAN Gigabit Ethernet

Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet

Slots provided

Number of internal jacks for 3.5-inch devices 3

Number of thin, external sockets 1

Slots provided

PCI Express 3.0 x16 1

PCI Express 3.0 x4 2

PCI 1

Supported interfaces

LAN 1 (RJ-45)

USB 2.0 4 (USB 2.0 (type A))

USB 3.0 5 (USB 3.0 (type A))

USB 3.1 1 (USB Type-C)

Serial 1 (9-pin)

DisplayPort 2

PS/2 1

Audio Line-In 1 (3.5 mm mini jack)

Headphones 1 (3.5 mm mini jack)

Power

Power supply type Power supply module

Power Location Internal

Input voltage AC 100-240 V

Input frequency 50/60 Hz

Number of installed power supplies 1;

Max. number of supported power supplies 1

Maximum output power 300 W

Other features

Exterior color Black

Dimensions & weight

Height 335 mm

Depth 359.5 mm

Width 176.53 mm

Nominal weight 8 kg

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Warranty Term Notes Next Business Day

Logistics information

Package Weight - Gross (kg) 10 kg

Package Weight - Net (kg) 0 kg

Quantity per pack 1

Carton weight - Gross (kg) 10 kg

Retail Packaging Net Weight Carton 0 kg

Retail Packaging Net Weight Plastic 0 kg

Packages in Carton 1

Package type Box
