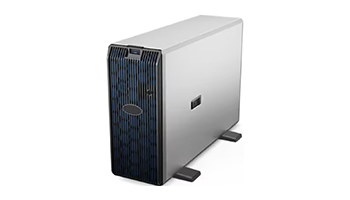

DELL EMC PET3503AWCIS-X2378-14 PowerEdge T350



PowerEdge T350 Server,3.5" Chassis x8 hot-plug HDD,Intel Xeon E-2378 2.6GHz 16M Cache 8C/16T,16GB UDIMM 3200MT/s,600GB Hard Drive SAS,PERC H755 Adapter 8GB,Dual Hot-Plug Redundant PSU(1+1)600W,TPM2.0,3Y NBD



System

System type Server

Tower system form factor

Processor

Intel Xeon E-2378 Processor

Internal clock frequency 2.6 GHz (up to 4.8 GHz)

Number of CPU cores 8

Threads Quantity 16

Maximum CPU bus clock speed 8 GT/sec

Socket 1200 processor socket

Number of installed processors 1

Max. number of installed processors 1

CPU Cache Size 16 MB

Features Supports 14 nm Processors

Number of motherboards supported 1

Memory

Memory type DDR4 SDRAM

Memory form factor DIMM 288-pin

Memory Speed/Frequency 3200MHz(PC4-25600)

It offers an ECC error checking method

Amount of installed system memory 16 GB

Maximum amount of installed memory 128 GB

Total number of memory slots 4

Memory Features Unbuffered

Controller

Plug-in-card RAID Controller:

PERC H755 8 GB

Supports: Level 0, Level 1, Level 10, Level 5, Level 50, Level 6, Level 60

SAS/SATA (2 x SFF-8654 (SlimSAS))

Data storage device

Hard Disk Drive 600 GB, 100000 rpm, SAS

Network specifications

Network Drive Form Factor Embedded

LAN Gigabit Ethernet

Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet

Slots provided

Number of Hot-Swap slots for 3.5-inch drives 8

Slots provided

PCI Express 4.0 2

PCI Express 3.0 2

Supported interfaces

USB 3.0 2 (USB 3.0 (type A))

USB 2.0 5 (USB 2.0 (type A))

LAN 2 (RJ-45)

Serial 1 (9-pin)

VGA 1 (15-pin D-sub)

Power

Power supply type Power supply module

Layout of the power supply Plug-in-module

Input voltage AC 100-240 V

Input frequency 50/60 Hz

Number of installed power supplies 2; Redundant (1+1)

Max. number of power supplies supported 2

Maximum output power 600 W

Other features

Standard cabinet height 4.5 U

Terms of use

Maximum ambient temperature 40 °C

Minimum ambient temperature 5 °C

Max. ambient temperature in off mode 65 °C

Min. non-operating ambient temperature -40 °C

Max. air humidity in off mode 95 %

Min. humidity in non-operating mode 5 %

Max. working altitude 3048 m

Max. storage altitude 12000 m

Dimensions & weight

Height 382.5 mm

Depth 581.12 mm

Width 175 mm

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Warranty Term Notes Next Business Day

Logistics information

Package Weight - Gross (kg) 20 kg

Package Weight - Net (kg) 20 kg

Quantity per pack 1

Carton weight - Gross (kg) 20 kg

Retail Packaging Net Weight Carton 20 kg

Retail Packaging Net Weight Plastic 20 kg

Packages in Carton 1

Package type Box
