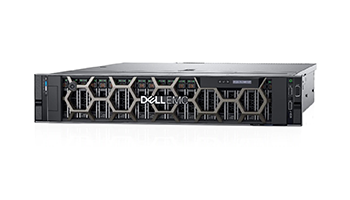

DELL EMC PER751501A-ARD00-14 PowerEdge R7515



PowerEdge R7515 Server,3.5" Chassis x8 Hot Plug HDD,AMD 7302P 3GHz 16C/32T 128M,16GB RDIMM 3200MT/s,iDRAC9 Enterprise 15G,600GB SAS HDD,PERC H330 RAID,2x1Gb Onboard LOM BCM5720,(1+0)PSU 750W,TPM 2.0,Rails,3Y NBD



System

System type Server

Rack-Mountable system form factor

Rails accessories included

Processor

EPYC 7002 Series processors supported

Processor AMD EPYC 7302P Processor

Internal clock frequency 3 GHz (up to 3.3 GHz)

Number of CPU cores 16

Threads Quantity 32

CPU socket Socket SP3

Number of installed processors 1

Max. number of installed processors 1

L3 cache size 128 MB

System on Chip (SoC) motherboard chipset

Number of motherboards supported 1

Memory

Memory type DDR4 SDRAM

Memory form factor DIMM 288-pin

Memory Speed/Frequency 3200MHz(PC4-25600)

Amount of installed system memory 16 GB

Maximum amount of installed memory 2 TB

Total number of memory slots 16

Memory Features Registered

Controller

Plug-in-card RAID Controller:

PERC H330

Supports: Level 0, Level 1, Level 10, Level 5, Level 50

SAS/SATA (2 x SFF-8643)

Remote Management Controller:

iDRAC9 Enterprise

Data storage device

Solid State Drive 600 GB, SAS

system fans

Max. number of fans supported 6 count

Network specifications

Network Drive Form Factor Embedded

LAN Gigabit Ethernet

Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet

Network Plug-in-card: Gigabit Ethernet/Fast Ethernet/Ethernet (Broadcom BCM5720)

Slots provided

Number of Hot-Swap slots for 3.5-inch drives 8

Slots provided

PCI Express 3.0 2

PCI Express 4.0 x16 2

Supported interfaces

USB 2.0 2 (USB 2.0 (type A))

USB 3.0 2 (USB 3.0 (type A))

LAN 4 (RJ-45)

Serial 1 (9-pin)

VGA 2 (15-pin D-sub)

Power

Type of power supply Power Supply - redundant

Power Location Internal

Input voltage AC 100-240 V

Input frequency 50/60 Hz

Number of installed power supplies 1; Redundant (1+0)

Max. number of power supplies supported 2

Maximum output power 750 W

Other features

Exterior color Black

Standard cabinet height 2 U

Rails accessories included

Terms of use

Maximum ambient temperature 35 °C

Minimum ambient temperature 10 °C

Max. ambient air humidity 80 %

Min. working air humidity 8 %

Max. ambient temperature in off mode 65 °C

Min. non-operating ambient temperature -40 °C

Max. air humidity in off mode 95 %

Min. humidity in non-operating mode 5 %

Max. working altitude 3048 m

Max. storage altitude 12000 m

Dimensions & weight

Height 86.8 mm

Depth 647.1 mm

Width 434 mm

Nominal weight 27.3 kg

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Warranty Term Notes Next Business Day

Logistics information

Package Weight - Gross (kg) 20 kg

Package Weight - Net (kg) 20 kg

Quantity per pack 1

Carton weight - Gross (kg) 20 kg

Retail Packaging Net Weight Carton 20 kg

Retail Packaging Net Weight Plastic 20 kg

Packages in Carton 1

Package type Box
