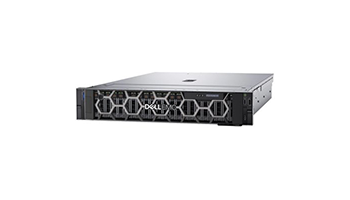

DELL EMC PER750XS-SVB00-14 PowerEdge R750



PER750 Server,Chassis 12x3.5" HotPlug HDD,Xeon Silver 4310 2.1G 12C/24T 18M,16GB RDIMM 3200,Riser 1x16+1x4 HL LP,iDRAC9 Ent,PERC H755 8GB,480GB SSD SATA Ri,Dual PSU(1+1)800W,TPM 2.0,LOM 2x1 GbE,OCP 3.0 Slot,Rails w/o CMA,3Y NBD



System

System type Server

Rack-Mountable system form factor

Rails accessories included

Processor

Intel Xeon Silver 4310 Processor

Internal clock frequency 2.1 GHz (up to 3.3 GHz)

Number of CPU cores 12

Threads Quantity 24

Maximum processor bus clock speed 10.4 GT/sec

Socket 4189 processor socket

Number of installed processors 1

Max. number of installed processors 2

CPU Cache Size 18 MB

Features Supports 10 nm Processors

Number of motherboards supported 1

Memory

Memory type DDR4 SDRAM

Memory form factor DIMM 288-pin

Memory Speed/Frequency 3200MHz(PC4-25600)

It offers an ECC error checking method

Amount of installed system memory 16 GB

Maximum amount of installed memory 1 TB

Total number of memory slots 16

Memory Features Registered

Controller

Plug-in-card RAID Controller:

PERC H755 8GB

Supports: Level 0, Level 1, Level 10, Level 5, Level 50, Level 6, Level 60

SAS/SATA

Remote Management Controller:

iDRAC9 Enterprise

Data storage device

Solid State Drive 480 GB, SATA III-600

Network specifications

Network Drive Form Factor Embedded

LAN Gigabit Ethernet

Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet

Slots provided

Number of Hot-Swap slots for 3.5-inch drives 12

Supported interfaces

USB 2.0 2 (USB 2.0 (type A))

VGA 2 (15-pin D-sub)

USB 3.0 1 (USB 3.0 (type A))

LAN 2 (RJ-45)

Power

Type of power supply Power Supply - hot-plug / redundant

Layout of the power supply Plug-in-module

Input voltage AC 100-240 V

Input frequency 50/60 Hz

Number of installed power supplies 2; Redundant (1+1)

Max. number of power supplies supported 2

Maximum output power 800 W

Other features

Exterior color Black

Rackmount mounting types

Standard cabinet height 2 U

Rails accessories included

Terms of use

Maximum ambient temperature 35 °C

Minimum ambient temperature 10 °C

Max. ambient temperature in off mode 65 °C

Min. non-operating ambient temperature -40 °C

Max. air humidity in off mode 95 %

Min. humidity in non-operating mode 5 %

Max. working altitude 3048 m

Max. storage altitude 12000 m

Dimensions & weight

Height 86.8 mm

Depth 707.78 mm

Width 482 mm

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Warranty Term Notes Next Business Day

Logistics information

Package Weight - Gross (kg) 20 kg

Package Weight - Net (kg) 0 kg

Quantity per pack 1

Carton weight - Gross (kg) 20 kg

Retail Packaging Net Weight Carton 0 kg

Retail Packaging Net Weight Plastic 0 kg

Packages in Carton 1

Package type Box
