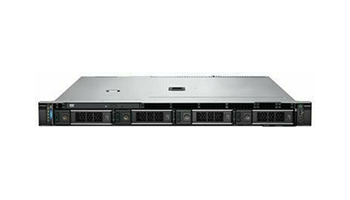

DELL EMC PER250CM2-2334-16G2T-14 PowerEdge R250



R250 Server,Xeon E-2334 3.4GHz 8M 4C/8T 12M,3.5" Chassis x4 Hot Plug HDD,16GB UDIMM 3200MT/s ECC,iDRAC9 Basic,PERC H355,2TB HDD 3.5" SATA 6Gbps,Cabled PSU 450W Plat,TPM 2.0,LOM 2x1GbE,Rails,3Y NBD



System

System type Server

Rack-Mountable system form factor

Rails accessories included

Processor

Intel Xeon E-2334 Processor

Internal clock frequency 3.4 GHz (up to 4.8 GHz)

Number of CPU cores 4

Threads Quantity 8

Maximum CPU bus clock speed 8 GT/sec

Socket 1200 processor socket

Number of installed processors 1

Max. number of installed processors 1

CPU Cache Size 8 MB

Intel C256 motherboard chipset

Features Supports 14 nm Processors

Number of motherboards supported 1

Memory

Memory type DDR4 SDRAM

Memory form factor DIMM 288-pin

Memory Speed/Frequency 3200MHz(PC4-25600)

It offers an ECC error checking method

Amount of installed system memory 16 GB

Maximum amount of installed memory 128 GB

Total number of memory slots 4

Memory Features Unbuffered

Controller

Plug-in card Remote Management Controller:

iDRAC9 Basic

RAID Controller:

PERC H355 SAS/SATA

Data storage device

Hard Disk Drive 2 TB, SATA III-600, 3.5" Form Factor

Network specifications

Network Drive Form Factor Embedded

Broadcom BCM5720 network card chipset

LAN Gigabit Ethernet

Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet

Slots provided

Number of Hot-Swap slots for 3.5-inch drives 4

Slots provided

PCI Express 4.0 x8 1

PCI Express 4.0 x16 1

Supported interfaces

USB 3.0 1 (USB 3.0 (type A))

USB 2.0 2 (USB 2.0 (type A))

LAN 2 (RJ-45)

Serial 1 (9-pin)

VGA 1 (15-pin D-sub)

Management Port 1 (micro-USB (type B))

Power

Power supply type Power supply module

Power Location Internal

Input voltage AC 100-240 V

Input frequency 50/60 Hz

Number of installed power supplies 1;

Max. number of supported power supplies 1

Maximum output power 450 W

Other features

Exterior color Black

Rackmount mounting types

Standard cabinet height 1 U

Rails accessories included

Terms of use

Maximum ambient temperature 35 °C

Minimum ambient temperature 10 °C

Max. ambient air humidity 80 %

Min. working air humidity 8 %

Max. ambient temperature in off mode 65 °C

Min. non-operating ambient temperature -40 °C

Max. air humidity in off mode 95 %

Min. humidity in non-operating mode 5 %

Dimensions & weight

Height 42.8 mm

Depth 598.64 mm

Width 482 mm

Nominal weight 12.48 kg

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Warranty Term Notes Next Business Day

Logistics information

Package Weight - Gross (kg) 10 kg

Package Weight - Net (kg) 10 kg

Quantity per pack 1

Carton weight - Gross (kg) 10 kg

Retail Packaging Net Weight Carton 10 kg

Retail Packaging Net Weight Plastic 10 kg

Packages in Carton 1

Package type Box
