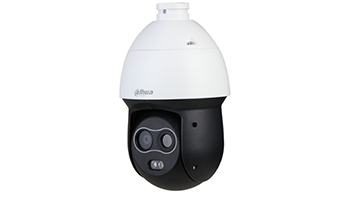

DAHUA TPC-SD2241-B7F8-S2 4MP Thermal Network Hybrid Speed Dome Camera PoE+



Dahua thermal + visible motorized dome. Thermal resolution 256x192. Detect people up to 292m. Detect vehicles up to 778m. Thermal focal length: 7mm (24°x18°). Viewable focal length: 8mm (33.4°x25°). ICR, 0.05/0.005 lux, IR 50m. Digital WDR, 2D/3D-NR, ROI. Pan&Tilt: 360°@200°/s (H)





Thermal camera



Vanadium Oxide Uncooled Focal Plane Sensor



Effective pixels: 256 x 192



Pixel size: 17 µm



Thermal sensitivity (NETD): <40mK



Spectrum range: 8 ~14 µm



Focal length (thermal): 7mm



Angle of view (thermal): 24°(H), 18°(V)



Effective distance in people:



Detection: 292 meters



Recognition: 75 meters



Identification: 38 meters



Effective distance in vehicles:



Detection: 778 meters



Recognition: 194 meters



Identification: 97 meters



16X digital zoom



Digital enhancement of details



Electronic Image Stabilizer



Automatic and manual gain control



2D/3D noise reduction



18 color palettes



Thermal Stream 1: 1280x960, 1024x768, 640x480, 1280x960 default (25 ips)



Thermal Stream 2: 640x480, 256x192 default (25 ips)



viewable camera

1/2.7" 4 megapixel CMOS sensor



Effective pixels: 2336 x 1752



Infrared illumination of ≥50 meters



0.05 lux (color), 0.005 lux (B/W), 0 lux IR On



8mm fixed lens



View Angle: 33.4°(H), 25°(V)



Day/night mode with removable mechanical filter



Picture modes: BLC, HLC, Digital WDR, 2D/3D-NR, Digital Defog



White balance with 7 modes



Automatic and manual gain control



Privacy mask of up to 4 zones on the same screen



Video compression H.265, H.264, MJPEG



Visible camera resolution: 2336x1752, 1920x1080, 1280x720, 704x576, 352x288



Stream 1 viewable: 2336x1752 default, 1920x1080, 1280x720, 704x576 (25 ips)



Stream 2 viewable: 1280x720, 704x576, 352x288 default (25 ips)



IVS Detection: Line Crossing Detection, Intrusion Detection



Advanced Detection Features: Fire Detection, Hot/Cold Spot Tracking, Person/Vehicle Classification, Smoking Detection

Horizontal positioner: 0° ~ 360° continuous



Vertical positioner: -15° ~ 90°



Manual speed: 0.1° ~ 200°/sec. (H), 0.1° ~ 120°/sec. (V)



Preset speed: 240°/sec. (H), 200°/sec. (V)



300 presets



5 patterns, 8 rounds of up to 32 presets, 5 Scan



General

Audio compression G.711a, G.711mu and PCM



1 input / 1 audio output



BNC video output



2 inputs / 1 alarm output



1 RS485 port



Ethernet: RJ-45 (10/100 Base-T)



Network protocols: HTTPS, HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP



Support Onvif, CGI, Dahua SDK



Up to 10 users



Compatible IE, Chrome, Firefox browsers



Compatible with Android and iOS mobile devices



MicroSD card slot up to 256GB (card not included)



Power: 12V DC, 2A (±20%) / PoE+ (802.3at) / ePoE



Consumption: <12W ~ <24W



Storage temperature -40°C ~ +70°C



Operating temperature -30°C ~+60°C



Relative humidity: ≤95%



Lightning-proof 6KV



Degree of protection IP66



metal shell



Dimensions: Ø160 x 295mm



Weight: <3.2Kg
