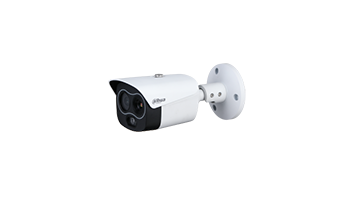

Dahua TPC-BF2241-B7F8-S2 4Megapixel Thermal Network Mini Hybrid Bullet Camera



> Uncooled VOx thermal sensor technology

> Athermalized lens (thermal camera), focus-free

> 1/2.7'' 4Megapixel progressive scan CMOS

> Wi-Fi optional

> Support ROI, motion detection, color palettes

> Smoking and call behaviour detection

> Support heat detection and alarm

> Built-in 1/1 alarm in/out

> Micro SD memory, IP67, PoE

> Smart linkage with strobe light and audio

> Dual image fusion (visible and thermal images)



HYBRID THERMAL VISION Dahua waterproof IP camera with thermal resolution 256x192, and visible resolution 2336x1752. Dual-stream with compression: H.265/H.264/MJPEG and maximum parameters: Themal 1280x960/25fps, Visible 2336x1752/25fps. Thermal imaging camera: High-quality VOx uncooled sensor. Pixel size 12μm. Sensitivity <50mK@f/1.0. Spectral x-ca 8~14μm. Different color schemes. Fixed lens 7mm with horizontal angle: 24°. Approximate human detection distance: 292m. Visible Spectrum Camera: 4MPix H.265+ Starlight DAY/NIGHT IP 2336x1752.

sensor using BSI technology to increase light sensitivity with size 1/2.7” light sensitivity 0.05Lux/F2.0(Color), 0.005Lux/F2.0(B/W). Fixed lens 8mm/F2.0 with a horizontal angle of 33.4°. Functions: Motion Detection, Video Tamper, Image Change, System Alarms, DWDR, AGC, AWB, 3D-DNR, BLC, HLC, PrivacyMask, ROI, Defog. Edge Storage & Alarm: SD Card, FTP Upload, NAS, Email notification & snapshot, APP notification. Intelligent functions optimized to reduce false alarms in perimeter security: Crossing a line with object classification (People/Vehicles), Entering an area with object classification (People/Vehicles), Fire detection. Built-in intelligent infrared backlight with a range of 35m. Interfaces: Micro SD card slot up to 256GB, 1x Audio input, 1x Audio output, 1x Alarm input, 1x Alarm output, 1x RS-485 port, Ethernet RJ-45 port 10/100Base-T. Monitoring applications: Windows: DSS, SmartPSS, Firefox, IE, Chrome, etc.; MAC: Safari, SmartPSS for MAC; iOS: iDMSS; Android: gDMSS; Linux: DSS. Supports ONVIF, CGI. Power supply: DC12V±15%/POE/12W. Compatible mounting accessories: PFA121, PFA150, PFA152-E, IP67 metal housing suitable for outdoor

assembly. Operating temp.: -30°C~60°C.
