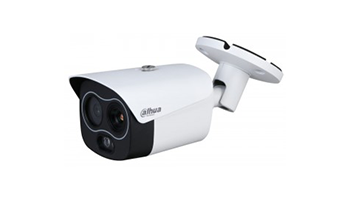

Dahua TPC-BF1241P-D3F4-S2 4Megapixel WizSense Thermal Network Bullet Camera



HYBRID THERMAL VISION AI waterproof Dahua IP camera with thermal resolution 256x192, and visible resolution 2366x1752. Dual-stream with compression: H.265/H.264/MJPEG and maximum parameters: Themal 1280x960/25fps, Visible 2366x1752/25fps. Thermal imaging camera: High-quality VOx uncooled sensor. Pixel size 12μm. Sensitivity <50mK@f/1.0. Spectral x-ca 8~14μm. Different color schemes. Fixed lens 3.5mm with horizontal angle: 50.6°. Approximate human detection distance: 146m. Visible spectrum camera: 4MPix H.265+ DAY/NIGHT IP 2336x1752. CMOS sensor size 1/2.7” (2336x1752) with light sensitivity 0.05Lux/F1.6(Color), 0.005Lux/F1.6(B/W). Fixed lens 4mmmm/F1.6 with a horizontal angle of 71.2°. Functions: Motion Detection, Video Tamper, Image Change, System Alarms, DWDR, AGC, AWB, 3D-DNR, BLC, HLC, PrivacyMask, ROI, Defog. Edge Storage & Alarm: SD Card, FTP Upload, NAS, Email notification & snapshot, APP notification. Smart functions: Line crossing (maximum range with 3.5mm lens - 24m), Zone entry (maximum range with 3.5mm lens - 24m), Fire detection (maximum range with 3.5mm lens - 22m), Cigarette smoke detection. Built-in intelligent infrared backlight with a range of 30m. Built-in speaker, Built-in smart white LED backlight for manual or automated impact on intruders or alarm events. Interfaces: Micro SD card slot up to 256GB, 1x Audio input, 1x Audio output, 1x Alarm input, 1x Alarm output, 1x RS-485 port, Ethernet RJ-45 port 10/100Base-T. Monitoring applications: Windows: DSS, SmartPSS, Firefox, IE, Chrome, etc.; MAC: Safari, SmartPSS for MAC; iOS: iDMSS; Android: gDMSS; Linux: DSS. Supports ONVIF, CGI. Power supply: DC12V±20%/POE/14W. Built-in 6kV TVS lightning protection.

Suitable for outdoor installation. Operating temp.: -30°C~50°C.

PFA151. Dimensions: 279.9x103.8x95.8mm.

Compatible mounting accessories: PFA130-E,

 PFA150, PFA152-E.
