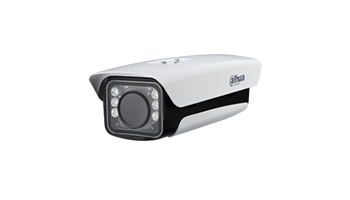

Dahua ITC237-PU1B-IR 2 Megapixel Full HD WDR Access ANPR Camera, PoE+

Featuring a True Day/Night, 2-megapixel resolution LPR camera in parking and access control environement, video detect and recognize the plate in low speed less than 40KMH with embedded LPR algorithm. White list inside the camera control barrier

> Embedded with LPR algorithm inside the camera
> Support plate cutout, overview picture snapshot and video recording
> Embedded with White list database,control the barrier
> Powerful 5-50mm manual lens and IR light, ideal for monitor ANPR distance as 40m
> Wide working temparature, IP66 and superior performance for outdoor applications
> True WDR technology
> Suitable for the ANPR detection and recognition in low speed environment (<80Km/H), such as parking, access control and urban street.

Camera

• Image Sensor     1/2.8 inch 2 Mega CMOS
• Max. Resolution     2MP, 1920(H) x 1080(V)
• Scanning System     Progressive
• Minimum Illumination     0.002Lux/F1.2（color）；0Lux/F1.2（IR on）
• Electronic Shutter Speed     1/50~1/10000
• IR Distance     40m
• IR LEDs     6

Lens

• Lens Type     Manual/Auto Iris(DC)
• Mount Type     CS
• Lens     5-50mm option
• Max Aperture     F1.6
• Angle of View     H: 50˚~ 5.6 ˚ V:37.5 ˚ ~4.2 ˚
• Focus Control     Manual
• Close Focus Distance     4~40m for license plate(Different height required,
• >10m long range recommendation)
• Focus Width Range     1~2 lanes width

Intelligence

• License Plate Recognition (LPR)     Embedded
• Detection model     Loop or video detection
• Snapshot     Overview and cutout of plate for picture
• OSD overlay     Time, plate number
• White list     10000 recording
• Barrier control     2 ch relay out to control the barrier

Network

• Ethernet     RJ-45 (100/1000Base-T)
• Interoperability     CGI, SDK, Onvif
• Max. User Access     20
• Web Viewer     IE8,IE9,IE10,IE11,Chrome V33, V41
• Protocol     IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS
• Edge Storage     Micro SD, Max 64GB Status Display Local PC for Instant Recording
• Management Software     DSS

Video

• Compression     H.265/H.264M/H.264H/H.264B
• Resolution     1080P(1920x1080)
• Frame Rate     1080P(1 ~ 25/30fps )
• Bit Rate Control     CBR VBR
• Bit Rate     32 ~ 16384 Kbps
• Day/Night     Auto(ICR) / Color / B/W
• Dual Stream     Support, Main stream and sub stream
• BLC Mode     BLC,HLC,WDR(140db)
• White Balance     Auto/Manual
• Gain Control     Auto/Manual
• Noise Reduction     3D

Certifications

• Certifications     CE
• FCC

Interface

• Audio Interface     Input/Output 2 Input / 1 Output
• Video Interface     BNC
• RS485     NA
• Alarm     2/2 channel In/Out

Electrical

• Power Supply     POE+
• Power Consumption     17W

Environmental

• Operating Conditions     Temperature-30°C~+60°C, Less than 95% RH
• RS485Ingress Protection &
• Vandal Resistance     IP66

Construction

• Dimensions     447mm ×240mm ×233mm
• Net Weight     4.1 kg with packaging
