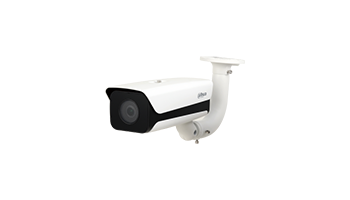

Dahua ITC215-PW4I-IRLZF27135 2 Megapixel Full HD AI Access ANPR Camera, PoE

> 1/2.8 inch 2Megapixel Progressive scan CMOS
> WDR, Day/Night(ICR), 3DNR,BLC, HLC
> H.265& H.264 dual-stream encoding
> Micro SD memory
> Powerful 2.7-13.5mm motorized lens and IR light, ideal for monitor ANPR distance 3-8m
> IP67, and superior performance for outdoor applications
> Embedded with LPR algorithm inside the camera
> Vehicle data structuring: license plate recognition, vehicle size, vehicle color detection and etc.

Camera

• Image Sensor    1/2.8 inch 2 Megapixel CMOS
• Effective Pixels    2MP, 1920(H) x 1080(V)
• Scanning System    Progressive
• Minimum Illumination    0. 005Lux/F1.3 (Color),0Lux/F1.3(IR on)
• Electronic Shutter Speed    1/50~1/10000
• IR Light Distance    Up to 12M
• IR light LEDs    6

Lens

• Lens Type    Motorized/ Auto Iris(DC)
• Mount Type    Board-in Type
• Focal Length    2.7mm~13.5mm
• Max Aperture    F1.3
• Angle of View    H: 119˚~ 32˚ V:65 ˚ ~18˚
• Focus control    Auto
• ANPR Distance    3-8M

Intelligence

• LPR Function    Embedded with Deep learning LPR engine
• Vehicle Detection    Supports vehicle video detection with high detection rate; supports vehicle direction detection
• Vehicle data structuring    license plate recognition, vehicle size, vehicle color detection and etc.
• Vehicle size detection    Supports 11 vehicle sizes detection:large bus, heavy truck, medium truck, sedan, minivan, light truck, SUV, MPV, medium bus, pick-up and minicar.
• Vehicle color detection    Supports 11 colors detection(daytime):white, black, blue, red, yellow, green, pinkish purple, gray, brown, orange and silver.
• Detection model    Supports Video detection or loop detection
• Snapshot    Overview and cutout of plate for picture
• OSD overlay    Time, place,plate number, etc.
• White list    10000 records database inside the camera
• Barrier control    Relay out to control the barrier

Interface

• Audio Interface    1 Input/1 Output
• RS485    2
• Alarm    3/3 channel In/Out
• Video
• Compression    H.265/H.264M/H.264H/H.264B
• Resolution    1080P(1920x1080) / 720P(1280x720) / D1(704x576)
• Frame Rate    Main Stream: 1080P(1 ~ 25/30fps)
• Sub Stream: 720P/ D1 (1 ~ 25/30fps)
• Bit Rate Control    CBR, VBR
• Bit Rate    32 ~ 16384 Kbps
• Day/Night    Auto(ICR) / Color / B/W
• Dual Stream    Support, Main stream and sub stream
• White Balance    Auto/Manual
• Gain Control    Auto/Manual
• Noise Reduction    3D

Network

• Ethernet    RJ-45 (100/1000Base-T)
• Interoperability    CGI, SDK, Onvif
• Max. User Access    20
• Web Viewer    IE8,IE9,IE10,IE11,Chrome V33, V41
• Protocol    IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS
• Edge Storage    Micro SD, Max 64GB Status Display Local PC for Instant Recording
• Management Software    PMS

Certifications

• Certifications    CE
• FCC

Environmental

• Operating Conditions    -30°C~+65°C, Less than 90% RH
• Ingress Protection    IP67
• Construction
• Dimensions(no bracket)    297mm × 124mm× 108mm
• Dimension(with bracket)    482mm × 124mm× 196mm
• Net Weight    1.9kg(no bracket)/3.3kg(with bracket)

Eelectrical

• Power Supply    DC12V, PoE +(802.3at)
• Power Consumption    <24W (with white light on, motorized lens working)
