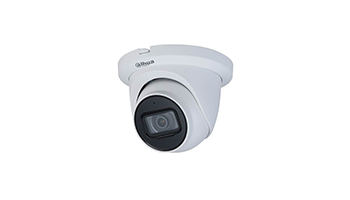

Dahua IPC-HDW3241TM-AS-0280B IP CAMERA 1080p 2.8 mm



2 megapixel AI IP waterproof Day & Night Starlight cameras infrared up to 50 meters, 2MP 1920x1080 with 25fps, 1 / 2.8 ”CMOS sensor, 2.8mm lens, 106 ° horizontal viewing angle, with mechanical IR filter, 0.002 Lux in color, 0 Lux b / w IR on, HLC, BLC, 3DNR, WDR 120dB, H.265 +, H.265, H.264, IP / TCP, HTTP, FTP, DHCP, 3 streams, SMD (intelligent detection of people and cars), built-in analytic features - line crossing, zone entry, face detection, built-in microphone, microSD 256GB slot, free 32-camera recording software, external mounting, IP67, PoE +, 12VDC, 7.7W.



* Compatible mounting accessories: PFA130-E, PFB203W

Standard:	TCP/IP
Sensor:	1/2.8 " Progressive Scan CMOS
Matrix size:	2.1 Mpx
Resolution:	1920 x 1080  - 1080p 1280 x 960  - 1.3 Mpx 1280 x 720  - 720p
Lens:	2.8 mm
View angle:	106 ° (manufacturer data)  104 ° (our tests result)
Range of IR illumination:	50 m
Memory card slot:	Micro SD memory cards up to 256GB support (possible local recording)
Image compression method:	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Alarm inputs / outputs:
Audio:	Microphone built-in  Audio detection
Bitrate:	3  ... 8192 kbps
Main stream frame rate:	25 fps @ 1080p
Network interface:	10/100 Base-T (RJ-45)
Network protocols:	IPv4/IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, IEEE 802.1x SNMP
WEB Server:	Built-in
Max. number of on-line users:	20
ONVIF:	18.06
Main features:	WDR - 120 dB - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - improve the quality of selected parts of image BLC/HLC - Back Light / High Light Compensation  Possibility to change the resolution, quality and bit rate  Motion Detection Configurable Privacy Zones Mirror - Mirror image  Audio detection  IVS analysis : intrusion, crossing the line (tripwire) - Detection of persons and vehicles
Mobile phones support:	Port no.: 37777 or access by a cloud (P2P)  Android: Free application gDMSS Plus iOS (iPhone): Free application iDMSS Plus
Default IP address:	192.168.1.108
Default admin user / password:	admin / - The administrator password should be set at the first start
Web browser access ports:	80, 37777
PC client access ports:	37777
Mobile client access ports:	37777
Port ONVIF:	80
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream
Power supply:	PoE (802.3af),  12 V DC / 650 mA
Power consumption:	< 7.7 W
Housing:	Dome - Metal + Plastic
Color:	White
"Index of Protection":	IP67
Operation temp:	-40 °C ... 60 °C
Weight:	0.49 kg
Dimensions:	Ø 122  x 99 mm
