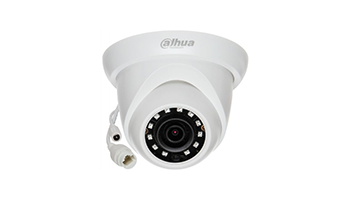

Dahua IPC-HDW1531S-0360B Ip Camera 5Mp, PoE

Standard: TCP / IP
Sensors: 1 / 2.7 ”Progressive Scan CMOS
Scanning System: Advanced
Matrix Size: 5.0 Mpx
Resolution: 2592 x 1944 - 5.0MP,
2688x1520 - 4.0MP,
2304 x 1296 - 3.0MP,
1920 x 1080 - 1080p
1280x1024 - 1.4MP,
1280 x 960 - 1.3 MP,
1280 x 720 - 720p
Operating mode: Main and side streaming available in any configuration

Firmware 2.622.0000000.23.R, build: 2018-03-30

    Main stream: 2592x1944, 2688x1520, 2304x1296, 1920x1080, 1280x960, 1280x720
    Side stream: 704 x 576, 640 x 480, 352 x 288

Lens: 3.6 mm
Viewing angle: 78 °
Infrared illumination range: 30 m
Signal to sound ratio (S / N):> 50 dB
Memory card slot:
Image compression method: H.265 / H.265 + / H.264 / H.264 + / MJPEG

Alarm inputs / outputs:
Audio:
Bit rate: 32… 10240 kbps - H.264
12… 8448 kbps - H.265
Main stream bitrate: 15fps @ 5.0 Mpx
25fps @ 3.0 Mpx frame rate
Network Interface: 10/100 Base-T (RJ-45)
Network protocols: HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4 / IPv6, QoS, UPnP, NTP, Bonjour, IEEE 802.1x, Multicast, ICMP, IGMP
WEB Server: Built-in
Maximum number of users online: 20
ONVIF: 16.12
Selected features:

    WDR - 120 dB - Wide range of lighting dynamics
    3D-DNR - Digital Noise Reduction
    ROI - Improves the quality of selected image snippets
    BLC / HLC - background / bright light compensation
    Ability to change resolution, quality and bit rate
    Motion detection
    Configurable privacy zones
    D-ZOOM - Digital zoom
    Mirror - a mirror image
    IVS Analysis: Intrusion, Line Crossing

Mobile Access: Port: 37777 or Cloud Access

    Android: Free application gDMSS Lite, Android: Free application imou
    iOS (iPhone): Free application iDMSS Lite, iOS (iPhone): Free application imou

There are also free versions of mobile applications: gDMSS Plus, iDMSS Plus
Default Address IP: 192.168.1.108
Default username / admin password: admin / -
The administrator password must be set at first startup
Browser Access Ports: 80, 37777
Access ports using PC application: 37777
Access ports using the mobile application: 37777
ONVIF port: 80
RTSP URL: rtsp: // admin: admin@192.168.1.108: 554 / cam / realmonitor? Channel = 1 & subtype = 0 - Main stream
rtsp: // admin: admin@192.168.1.108: 554 / cam / realmonitor? channel = 1 & subtype = 1 - Nearby feed
Color: White
Power source:

    PoE (802.3af),
    12V DC / 330mA

Power consumption: <4 W
Case: Dome - Metal / Plastic
Protection class: IP67
Operating temperature: -30 ° C to 60 ° C
Size: Ø 108 x 85 mm
Weight: 0.27 kg
