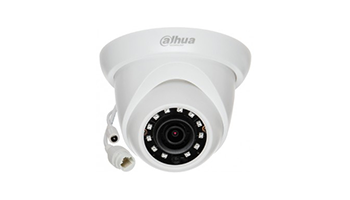

Dahua IPC-HDW1230S-0360B IP CAMERA - 1080p 3.6 mm

IP camera with efficient H.264 / H.265 image compression algorithm for clear and smooth video streaming at maximal resolution of 1080p
PoE powering possibility, compatible with the 802.3af standard makes the device more universal and easier to install.

Standard:    TCP/IP
Sensor:    1/2.9 " Progressive Scan CMOS
Scanning system:    Progressive
Matrix size:    2.1 Mpx
Resolution:    1920 x 1080  - 1080p
1280 x 1024  - 1.4 Mpx
1280 x 960  - 1.3 Mpx
1280 x 720  - 720p
Operation modes:    Main and sub streams may be in any configuration

Firmware 2.460.0000.14.R, build : 2017-07-20
Main stream : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720
Sub stream : 704 x 576, 640 x 480, 352 x 288
Lens:    3.6 mm
View angle:
83 ° (manufacturer data)
80 ° (our tests result)
Range of IR illumination:    30 m
S/N ratio:    > 50 dB
Memory card slot:
Image compression method:    H.265 / H.264 / MJPEG
Alarm inputs / outputs:
Audio:
Bitrate:    24  ... 9472 kbps - H.264
14  ... 5632 kbps - H.265
Main stream frame rate:    25 fps @ 1920 x 1080
Network interface:    10/100 Base-T (RJ-45)
Network protocols:    HTTP, HTTPS, IPv4/IPv6, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, QoS, UPnP, NTP, Bonjour, IEEE 802.1x, Multicast, ICMP, IGMP, SNMP
WEB Server:    Built-in
Max. number of on-line users:    20
ONVIF:    16.12
Main features:
Motozoom lens
WDR - 120 dB - Wide Dynamic Range
3D-DNR - Digital Noise Reduction
ICR - Movable InfraRed filter
BLC - Back Light Compensation
HLC - High Light Compensation (spot)
AGC - Automatic Gain Control
Auto White Balance
Mobile phones support:    Port no.: 37777 or access by a cloud (P2P)
Android: Free application gDMSS Lite
iOS (iPhone): Free application iDMSS Lite
There are also other versions of mobile applications: gDMSS Plus, iDMSS Plus
Default IP address:    192.168.1.108
Default admin user / password:    admin / admin
Web browser access ports:    80, 37777
PC client access ports:    37777
Mobile client access ports:    37777
Port ONVIF:    80
RTSP URL:    rtsp://admin:admin@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream
rtsp://admin:admin@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream
Color:    White
Power supply:
PoE (802.3af),
12 V DC / 420 mA
Power consumption:    < 5.4 W
Housing:    Dome - Metal / Plastic
"Index of Protection":    IP67
Operation temp:    -30 °C ... 60 °C
Dimensions:    Ø 108  x 84 mm
Weight:    0.264 kg
