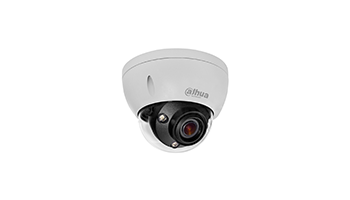

Dahua IPC-HDBW5442E-ZE-2712-DC12AC24V 4Mpx IP VANDALPROOF CAMERA 2.7-12 mm MOTOZOOM POE



IP camera with efficient H.264 / H.265 image compression algorithm for clear and smooth video streaming at maximal resolution of 2688 x 1520 (4.0 MPx). Due to above it is perfect solution for surveillance systems requiring persons or vehicles recognition.

The used motozoom lens with 2.7 ... 12 mm focal length allows to remote view angle adjustment. The range of IR illumination according to the manufacturer data, depends on outer conditions (visibility - air transparency, environment, wall colors ie. scene reflectance).

PoE powering possibility, compatible with the 802.3af standard makes the device more universal and easier to install. The device is equipped with ePoE technology which enables transmission up to 800 m at a speed of 10 Mb/s or 300 m at a speed of 100 Mb/s via cat. 5 twisted-pair.

The "Starlight" series cameras provide a clear color image even at very poor lighting.



Standard:	TCP/IP
Sensor:	1/1.8 " Progressive Scan CMOS
Matrix size:	4 Mpx
Resolution:	2688 x 1520  - 4 Mpx , 2304 x 1296  - 3 Mpx , 1920 x 1080  - 1080p 1280 x 960  - 1.3 Mpx 1280 x 720  - 720p
Lens:	2.7  ... 12 mm - Motozoom
View angle:	114 ° ... 47 ° (manufacturer data)  106 ° ... 46 ° (our tests result)
Range of IR illumination:	40 m
RS-485 interface:
Memory card slot:	Micro SD memory cards up to 256GB support (possible local recording)
Image compression method:	H.265+ / H.265 / H.264+ / H.264 / MJPEG
Alarm inputs / outputs:	1 / 1
Audio:	External microphone input  Audio output  Bi-directional audio streaming support  Audio detection
Bitrate:	32  ... 8192 kb/s - H.264 19  ... 8192 kb/s - H.265
Network interface:	100/1000 Base-T (RJ-45)
Network protocols:	HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, SNMP, QoS, UPnP, NTP, ICMP, IGMP, IEEE 802.1x, Multicast
WEB Server:	Built-in, Web Viewer
Max. number of on-line users:	20
ONVIF:	18.06
Main stream frame rate:	25 fps @ 4 Mpx
Mobile phones support:	Port no.: 37777 or access by a cloud (P2P)  Android: Free application gDMSS Plus iOS (iPhone): Free application iDMSS Plus
Default IP address:	192.168.1.108
Default admin user / password:	admin / - The administrator password should be set at the first start
Web browser access ports:	80, 37777
PC client access ports:	37777
Mobile client access ports:	37777
Port ONVIF:	80
RTSP URL:	rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream
Main features:	Motozoom lens  WDR - 140 dB - Wide Dynamic Range  EIS - Electronic Image Stabilization 3D-DNR - Digital Noise Reduction ROI - improve the quality of selected parts of image F-DNR (Defog) - Reduction of image noise caused by precipitation  BLC/HLC - Back Light / High Light Compensation  Possibility to change the resolution, quality and bit rate  Motion Detection Configurable Privacy Zones ICR - Movable InfraRed filter Mirror - Mirror image  Heat map - the selection in the image by corresponding colors the areas with different traffic IVS analysis : crossing the line (tripwire), scene changing, intrusion - classification of people and vehicles, abandoned/missing object, people counting- detection and maintenance of 4 independent areas, detection of people gathering, face detection - supports 6 types of facial attributes extraction
Power supply:	ePoE,  PoE (802.3af),  12 V DC / 1.03 A,  24 V AC / 520 A
Power consumption:	≤ 12.4 W - Heater on
Housing:	Dome - Metal
Color:	White
"Index of Protection":	IP67
Vandal-proof:	IK10
Operation temp:	-30 °C ... 60 °C
Weight:	0.88 kg
Dimensions:	Ø 159  x 118 mm
