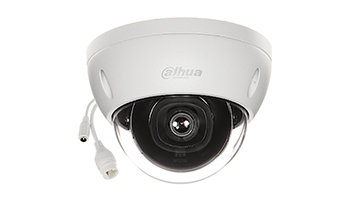

DAHUA IPC‐HDBW2531E‐S‐0280B‐S2 IP Camera 5MP PoE



Vandal-resistant IP surveillance camera with a resolution of 5 MP (2592 × 1944), IR LED illumination up to 30 m and the possibility of storage on a Micro SD card or in the cloud. Access to the camera via computer or mobile phone



TCP / IP standard

1 / 2.7 "Progressive Scan CMOS Converter

Matrix size 5 MP

Resolutions 2592 × 1944 - 5 MP

2688 × 1520 - 4 MP

2048 × 1536 - 3.1 MP

2304 × 1296 - 3 MP

1920 × 1080 - 1080p

1280 × 960 - 1.3 MP

1280 × 720 - 720p

2.8 mm lens

Viewing angle 103 °

IR illumination range 30 m

Image compression method H.265 + / H.265 / H.264 + / H.264 / MJPEG

Main current transfer rate 20 fps at 5 MP

Network protocols IPv4 / IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, IEEE 802.1 ×, Bonjour

Network interface 10/100 Base-T (RJ-45)

WEB server built-in

Max. number of users 20

ONVIF 18.06

Default IP address 192.168.1.108

Access ports via website 80, 37777

Selected WDR functions - wide dynamic range

3D-DNR - digital noise reduction in the image

ICR - Mechanical IR filter

BLC / HLC - Backlight / strong light compensation

ROI - improves the quality of selected parts of the image

AGC - Automatic image gain control

motion detection

Mirror - mirror image

automatic whiteness regulator

privacy areas

IVS analysis: intrusion, line crossing

Micro SD memory card slot up to 256 GB (local format possible)

PoE power supply (802.3af)

12 V DC / 510 mA

Power consumption up to 6.1 W

Weight 0.36 kg

Dimensions Ø 110 × 81 mm
