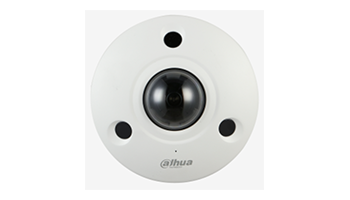

DAHUA IPC‐EBW81242 12MP Panoramic Network IR Fisheye Camera POE



> 12MP, 1/1.7”CMOS image sensor

> Max output 12MP (4000×3000)@30fps

> 3D DNR,AWB,HLC, BLC,ROI, SVC, SMART H.264/H.265

> People counting in multiple areas, queuing management in multiple areas, heat map (number of peole /time), and track map

> 2/2 Alarm in/out, 1/1 audio in/out

> 12V DC/POE power support

> IP67, IK10 protection



12 MP H.265 AI True DAY / NIGHT IP vandal resistant 360o Fisheye dome camera or 12MP (4000x3000). Large area CMOS sensor to increase light sensitivity with size 1 / 1.7 ”with light sensitivity 0.001lux / F2.0 (color), 0Lux@F2.0 (IR on). Fixed 1.85mm / F2.0 lens with 185o horizontal angle, 180o vertical angle. Triple stream with H.265 / H.264 compression, resolution: 12MP (4000x3000) / 25FPS, 6MP (3072x2048) / 25FPS, 3MP (2048x1536) / 25FPS, 1080P (1920x1080) / 25FPS. Functions: Motion detection, 3D-DNR, DWDR, BLC, HLC, AGC, AWB, ROI, Defog, Privacy mask. Smart features: Counting past people, Counting people in a zone, Crossing a line, Entering a zone, Heat map. Supports ONVIF, PSIA, CGI. Built-in IR LED - with lighting distance up to 10m. Interfaces: 2 alarm input, 2x alarm output, 1x audio input, 1x audio output, Built-in microphone, Micro SD card slot - up to 256GB. Gigabat Network: RJ ‐ 45 (100 / 1000Base ‐ T), Monitoring Applications: Windows: DSS, SmartPSS, Firefox, IE, Chrome, etc .; MAC: Safari, SmartPSS for MAC; iOS: iDMSS,; Android: gDMSS,; Linux: DSS. Operating temperature: - 30 ° C ~ 70 ° C; Power supply: DC12V ± 25% / 12.9W, PoE (802.3af). Built-in TVS lightning protection 6kV.

outdoor installation with degree of protection IP67 & IK10 and dimensions: Ø149.8x59.8mm.
