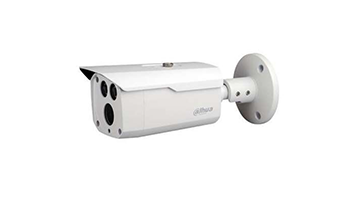

Dahua HAC-HFW1500D-0360B DAHUA QUADBRID HDCVI BULLET 5.0MP 3.6MM LENS, IR80M, IP67

Megapixel camera with 1 / 2.7 ″ CMOS sensor and HD-CVI (High Definition Composite Video Interface) / PAL interface.
The AHD / HD-CVI / HD-TVI interface enables the transmission of analog video signals via coaxial cable in a resolution of max. 8 Mpx (4K UHD). There are no delays during transmission and the original high image quality is maintained. In the case of video transmission via twisted pair and matching transformers, one should take into account the possibility of signal reflections and the penetration of signals between themselves. Attention! The camera is set by default in the HD-CVI standard. To change the camera standard, the PFM820 controller is required, available separately. The camera meets the IP67 protection class.

Product characteristics:

• Standard: HD-CVI, HD-TVI, AHD, PAL
• Matrix size: 5 Mpx
• Transducer: 1 / 2.7 ”Progressive Scan CMOS
• Resolution: 2592 x 1944 - 5 Mpx @ 25 fps,
• 2560 x 1440 - 3.7 Mpx @ 25 fps
• 960 x 576 - 960H, CVBS
• Video output: HD-CVI / HD-TVI / AHD / PAL - 1 Vpp / 75 Ω
• Lens: 3.6 mm
• Viewing angle:78 ° (manufacturer data)
• Signal / noise ratio (S / N):> 65 dB
• IR illuminator range: 80 m
• IR illuminator power adjustment: Automatic

Selected functions:

• D-WDR - A wide range of lighting dynamics
• 2D-DNR - Digital noise reduction in the image
• BLC / HLC - background light / strong light compensation
• AGC - Automatic adjustment of image gain
• ICR - Mechanical infrared filter
• Customizable privacy zones
• Automatic white balance
• Mirror - Mirror image
• Anti-Flicker - Technology that eliminates the tiring eyes flickering effect
• Sharpness - Sharpens the image contours

• OSD menu: OSD menu accessible via the recorder
• Power supply: 12 V DC / 380 mA
• Power consumption: ≤ 4.6 W
• Housing: Compact, Aluminum
• White color
• Sealing class: IP67
• Working temperature: -40 ° C ... 60 ° C
• Weight: 0.6 kg
• Dimensions: 242 x 90 x 90 mm
