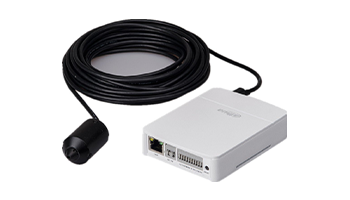

DAHUA DH-IPC-HUM8101 1.3 MP NETWORK CAMERA PINHOLE



 Indoor micro camera equipped with very good quality CMOS sensor.



Camera is equipped with PINHOLE type lens, needs only a very small hole to get right field of view. Included camera software enables management and integrated monitoring of many network cameras.



The compatibility of the camera with ONVIF standard ensures it can be used in different IP surveillance systems regardless of manufacturer.



Standard:	TCP/IP
Sensor:	1/3 " Progressive Scan CMOS
Matrix size:	1.3 Mpx
Resolution:	1280 x 960  - 1.3 Mpx , 1280 x 720  - 720p 704 x 576  - D1 , 352 x 288  - CIF
Operation modes:	Main and sub streams may be in any configuration  Firmware 2.400.0000.10.R build: 2016-03-14 Main stream : 1280 x 960, 1280 x 720, 704 x 576   Sub stream : 704 x 576, 352 x 288
Lens:	3.6 mm (pinhole)
View angle:	83 ° (manufacturer data)  72 ° (our tests result)
Min. illumination:	0.01 Lux / F2.8
S/N ratio:	> 50 dB
Audio:	External microphone input  Audio output  Bi-directional audio streaming support  Audio detection
RS-485 interface:
RS-232 interface:
Bitrate:	48  ... 8192 kbps - H.264
Main stream frame rate:	25 fps @ 1280 x 960
Network protocols:	TCP/IP, HTTP, DHCP, DNS, DDNS, FTP, NTP
ONVIF:	2.42
Image compression method:	H.264 / MJPEG
Network interface:	10/100 Base-T (RJ-45)
Alarm inputs / outputs:	2 / 2
Mobile phones support:	Port 37777 Android: Free application gDMSS Lite iOS (iPhone): Free application iDMSS Lite There are also paid versions of mobile applications: gDMSS Plus, iDMSS Plus
Default admin user / password:	admin / admin
Default IP address:	192.168.1.108
Web browser access ports:	80, 37777
PC client access ports:	37777
Mobile client access ports:	37777
Port ONVIF:	80
RTSP URL:	rtsp://admin:admin@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:admin@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream
Memory card slot:	Cards support max. 64 GB
Power supply:	12 V DC / 580 mA,  PoE (802.3af)
Power consumption:	< 7 W
Main features:	BLC - Back Light Compensation HLC - High Light Compensation (spot)  WDR - Wide Dynamic Range 3D-DNR - Digital Noise Reduction Configurable Privacy Zones IVS analysis - crossing the line (tripwire), intrusion, abandoned/missing object, scene changing, face detection
Length of the cable:	8 m
Operation temp:	-30 °C ... 60 °C
Weight:	0.20 kg - Network module 0.22 kg - Camera
Dimensions:	110  x 83  x 24 mm - Network module Ø 27  x 49 mm - Camera
Supported languages:	English, Polish
Manufacturer / Brand:	DAHUA
