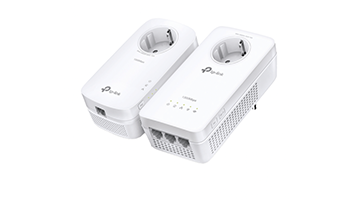

TP-LINK TL-WPA8631P KIT AV1300 Passthrough Powerline



Expanding and enhancing the Internet wirelessly and wired

OneMesh support

High speeds up to 1300Mbps

Built-in sockets



Generally



3 Gigabit Ethernet Port LAN ports,

Manufacturer TP-LINK

Powerline type

Transmission speed 1300Mbps



HomePlug AV2 Standard - Provides extremely fast powerline transfer speeds up to 1300 Mbps *

AC1200 Dual-Band Wi-Fi - Extends ultra-fast dual-band Wi-Fi with speeds up to 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz *

OneMeshTM - Works with the OneMeshTM router to create a unified seamless mesh network on the go

2 × 2 MIMO - Creates multiple simultaneous connections for higher speeds and greater stability

One-touch Wi-Fi configuration - One touch of the Wi-Fi button copies the network name and password from your router. Any changes to the settings will be automatically applied to the entire Powerline network

Automatic Wi-Fi synchronization - Add extra extension to your network via the pair button, synchronize settings evenly such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices

Plug and Play - Set up your network and start enjoying fast, seamless wired / wireless connections in minutes

Extra Power Socket - Connect the rest of your devices to the built-in socket

3 × Gigabit Ports - Provide secure wired networks for desktops, smart TVs or game consoles



HARDWARE FEATURES

Plug Type EU

Standards and Protocols HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b / g / n (2.4 GHz), IEEE 802.11a / n / ac (5 GHz)

Interface 3 Gigabit Ethernet ports, 1 power socket

Button Pair, LED On / O ff, Wi-Fi, Reset

Power Consumption TL-WPA8631P: Maximum: 13.7W, Typical: 11W

TL-PA8010P: Maximum: 4.9W, Typical: 4.6W

LED Indicator Power, Powerline, Ethernet, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz)

Dimensions (W x D x H) TL-WPA8631P: 3.0 × 1.7. 6.0 in. (75 × 42 × 152 mm)

TL-PA8010P: 2.8 × 1.7 × 5.2 in. (72 × 42 × 131 mm)

Range Up to 300 meters above the existing electrical wiring *

Compatibility Compatible with all HomePlug AV & HomePlug AV2 standards

powerline adjustments *

Transmission Speeds Powerline: up to 1300 Mbps

Ethernet: 10/100/1000 Mbps



SOFTWARE FEATURES

Wireless Security: WPA-PSK / WPA2-PSK, WEP Encryptions,

Powerline: 128-bit AES Encryption

Management TP-Link tpPLC App, or download new tpPLC Utility on PC: www.tp-link.com/support/download

Modulation Technology OFDM
