Overview

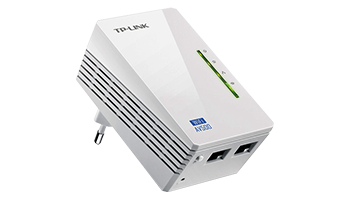

Extend the reach of your network with the TL-WPA4220 300 Mb/s AV500 Wi-Fi Powerline Extender from TP-Link. This HomePlug AV compatible networking adapter offers up to 300 Mb/s data transfer rates over a home's existing electrical wiring. These data transfer rates support a variety of tasks such as transferring large files, streaming HD content, online gaming, and much more.

The TL-WPA4220 offers both IEEE 802.11b/g/n Wi-Fi connectivity and two Ethernet ports perfect for connecting game consoles, smart TVs, media players, and more. Configuration of this networking adapter is simple as it features a Pair, Reset, Wi-Fi/Wi-Fi Clone button. Once configured, your network will remain secure through the use of 128-bit AES PowerLine security and WEP/WPA/WPA2 wireless encryption standards.

    Wi-Fi Clone button simplifies your Wi-Fi configuration and helps build a seamless unified home network

    HomePlug AV standard providing up to 300 Mb/s high speed data transmission over a home's existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming

    Extend 300 Mb/s wireless connections to previously hard-to-reach areas of your home and office

    Two Ethernet ports allow your TVs, game consoles, or PCs connect to the Internet

    Up to 300-meter range over the household power circuit

    Easy to install, just plug in and play

    128-bit AES encryption easily at a push of the "Pair" Button

    Supports IGMP managed multicast IP transmission, optimizing IPTV streaming

HARDWARE FEATURES
Plug Type     EU, UK, US, AR
Standards and Protocols     HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface     2*10/100Mbps Ethernet Port
Button     Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption     Maximum: 5.308W (220V/50Hz)
Typical: 5.086W (220V/50Hz)
Standby: 4.170W (220V/50Hz)
LED Indicator     PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H )     3.7 x 2.1 x 1.6 in. (94×54×40mm)
Range     300 Meters over electrical circuit
WIRELESS FEATURES
Frequency     2.4-2.4835GHz
Signal Rate     11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity     270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Security     64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Advanced Functions     Enable/DisableWireless Radio,WMM, Wireless Statistics
Transmission Power     CE:<20dBm(2.4GHz)
FCC:<30dBm
SOFTWARE FEATURES
Modulation Technology     OFDM (PLC)
Encryption     Powerline Security:
128-bit AES
Wireless Security:
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTHERS
Certification     CE, FCC, RoHS
Package Contents     Powerline Ethernet Adapter TL-WPA4220
6.5 ft. (2 m) Ethernet cable (RJ45)
Resource CD
Quick Installation Guide
System Requirements     Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Environment     Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
