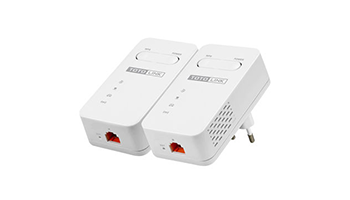

TOTOLINK PLW350KIT PLC003 150Mbps AV200 Wi-Fi Power Line Extender Kit

1*FE port,1*WPS button,1* Power button, up to 300 meters range, twins package

  Complies with Home Plug AV and wireless IEEE802.11n/g/b standards.
    - Up to 200Mbps wired speed and 150Mbps Wi-Fi.
    - One-touch for secured wireless extension simply.
    - Supports AP mode and Repeater mode.
    - Twin Pack design helps establish a basic powerline network.
    - No need Ethernet cables, using electrical wires.
    - Both wired and Wi-Fi connection are available.
    - Independent Power ON/OFF button for easy device control.
    - Wi-Fi Schedule and Reboot Schedule for easy management on powerline extender.
    - Environmental protection design.

HARDWARE FEATURES

Interface

• 1*10/100Mbps Ethernet Port

Power Supply

• AC 100V~240V

Button

• 1*Power button
• 1*WPS button
• 1* RST button

LED Indicators

• 1*Power
• 1*LAN
• 1*Link
• 1*Wi-Fi

WIRELESS FEATURES

Standards

• HomePlug AV
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b

RF Frequency

• 2.4GHz

Data Rate

• Up to 150Mbps Wi-Fi
• 200Mbps over Powerline

EIRP

• < 20dBm

Wireless Security

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• 128-bit AES link encryption with key management

Reception Sensitivity

• 11b 11M: - 81 dBm
• 11g 54M: - 68 dBm
• 11n HT20: - 65 dBm / HT40: - 62 dBm

SOFTWARE FEATURES

Operation Mode

• AP Mode
• Repeater Mode
• Wireless Functions
• Basic Setting
• Advanced Setting
• Schedule
• Wi-Fi Schedule
• Reboot Schedule
• System
• System Log, Admin Setup, Firmware Upgrade, System Time, Config Backup and Restore
• Others

Package Contents

• PLW350 KIT *1
• Quick Installation Guide *1

Environment

• Operating Temperature: 0~40 Celsius
• Storage Temperature: -40 ~70 Celsius
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
