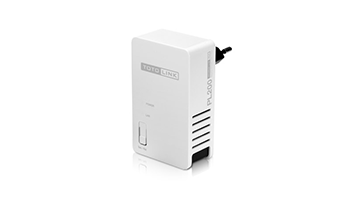

TOTOLINK PL200 PLC002 200Mpbs Power Line Adapter with detachable plug


1*FE port,1*RST/WPS button, 1* detachable plug, UP to 300 meters range

    Complies with Home Plug AV, IEEE 802.3 and IEEE 802.3u standards.
    - High-speed data rate up to 200Mbps.
    - Super small design with detachable power plug.
    - No need cables, using electrical wires.
    - Up to 300 meters range, excellent solution for wall and floor crossing.
    - Plug and Play, no configuration required.
    - Green product, power consumption reducing up to 65%.
    - Built-in QoS assures the quality of bandwidth sensitive applications such as voice, video and online games.
    - Supports IGMP, optimizing IPTV streaming.

HARDWARE FEATURES

Interface

• 1*10/100Mbps Ethernet Port

Power Supply

• AC 100V~240V

Dimensions

• 93mm x 56mm x 30mm L x W x H

LED Indicators

• 1*Power, 1*LAN

Environment

• Operating Temperature: 0~40 Celsius
• Storage Temperature: -40~70 Celsius
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~95% non-condensing

WIRELESS FEATURES

Standards

• HomePlug AV
• IEEE 802.3
• IEEE 802.3u

Data Rate

• 200Mbps over Powerline

Wireless Security

• 128-bit AES link encryption with key management

Modulation Type

• OFDM/CCK/16-QAM/64-QAM

Power Consumption

• <4w
