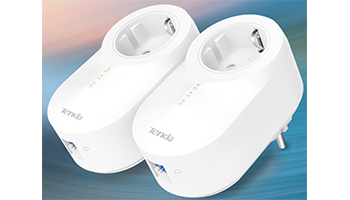

TENDA PH6 AV1000 Gigabit Passthrough Powerline Adapter Kit



PH6 is a powerline adapter designed for 3D/HD video streaming and home entertainment sharing. With the latest Homeplug AV2 technology, PH6 uses existing electrical that can offer a transmission rate of up to 1000Mbps. The Plug and play feature frees you from having to set it up. Designed with an integrated power socket, PH6 will not decrease the number of power sockets in your family.



Ultra-fast internet connection over your existing electrical circuit



With the latest Homeplug av2 technology, PH6 provides a transmission rate of as high as 1000 Mbps, allowing you to watch 4K HD videos and transfer bulky data over your existing powerline.



Gigabit Ethernet port for fast data transfer



10 times faster than 100 Mbps Ethernet port, its gigabit Ethernet port provides 1000 Mbps LAN connection speed for wired devices, such as TV, game console, set-top box, PC, NAS and printer.



Plug and play，No need setup



Delivered in a paired condition, it works properly as soon as it is cabled and powered on.



Integrated power socket, no power socket goes to waste



Designed with a power socket that allows as high as 16 A current, PH6 can supply power to TV, game console or desktop computer. The built-in noise isolation filter reduces interference from the electrical appliance plugged to the power socket of PH6.



Power saving mode for 85% less energy consumption



PH6 enters power saving mode when no device is connected to reduce energy consumption by over 85% subject to the operating environment.





Speed

Poweline 1000Mbps

Standard&Protocol

HomePlugAV2
IEEE 802.3,IEEE 802.3u,IEEE 802.3ab

Interface

1*10/100/1000M

Modulation Technology

OFDM,CSMA/CA

Button

1*Pair/Reset

LED indicator

1*Power
1*Powerline
1*Ethernet

Power Consumption

Maximum: 3.2W (220V/50Hz)
Minimum: 0.36W (220V/50Hz)

Power Input

AC:100～240V 50/60Hz 0.1A

Frequency

Powerline:2-86MHz

Dimension

108.5mm*61.5mm*45mm

Certification

CE,FCC,RoHs

Plug Type

EU,UK,US

Package Content

AV1000 Gigabit Passthrough Powerline Adapter*2
Quick Installation Guide
Cat5e Ethernet Cable*2

Environment

Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity:5% ~ 90%RH non-condensing
Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
Storage Temperature: -40°F ~ 158°F (-40°C ~ 70°C )
