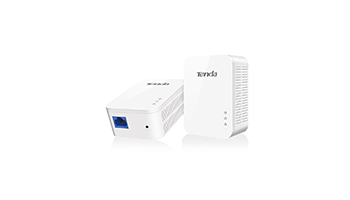

TENDA PH3 AV1000 Gigabit Powerline Adapter Kit



PH3 Low-power consumption design, full load power consumption less than 3.2W， built in the latest intelligent detection function, when no device connects to PH3,it will switch to standby mode, the power will automatically switch from normal mode to 0.36W power saving mode, you can save up to 88% power consumption.



UHD Streaming Partner



PH3 AV1000 Gigabit Powerline Adapter Kit



Full Gigabit Speeds For UHD Streaming



With advanced HomePlug AV2 technology, PH3 provides you with stable, high-speed data transfer rates of up to 1000Mbps on the powerline, and integration Gigabit Ethernet ports for wired devices bring you full Gigabit network; Perfect support 4K HD video smooth online play, At the same whether it is a multimedia player, online games, PH3 can provide fast Internet experience.



Accessible wall, Internet signal transfer while the powerline exist



Powerline technology allows existing wires become vector transmission of multimedia and data flow，you can access to the internet where the socket exist，easy to get home, office network expansion and extension



Election materials, safe and reliable



Rigorous work, excellent choice of materials is PH3 transmission stable, reliable and durable basis，effective transmission distance up to 300 meters

•  Broadcom Gigabit Powerline chips   •  V0 class fire retardant housing   •   Innovative board design process



Plug and play, easy networking



The factory default pairing,plug in the socket to finish the networking automatically,no need to set, saving time





Speed: Poweline 1000Mbps

Standard&Protocol: HomePlugAV2

IEEE 802.3,IEEE 802.3u,IEEE 802.3ab

Interface: 1*10/100/1000M

Modulation Technology: OFDM,CSMA/CA

Button: 1*Pair/Reset



LED indicator:

1*Power

1*Powerline

1*Ethernet



Power Consumption: Maximum: 3.2W (220V/50Hz)

Minimum: 0.36W (220V/50Hz)

Power Input: AC100～240V 50/60Hz 0.1A

Frequency: Powerline:2-86MHz

Dimension: 82mm*60mm*32mm

Certification: CE,FCC,RoHs

Plug Type: EU,UK,US



Package Content:

AV1000 Gigabit Powerline Adapter

Quick Installation Guide

Cat5e Ethernet Cable



Environment: Operating Temperature:  0°C ~ 40°C(32°F ~ 104°F)

Storage Temperature: -40°F ~ 158°F (-40°C ~ 70°C )

Operating Humidity:10% ~ 90% RH non-condensing

Storage Humidity:5% ~ 90%RH non-condensing.
