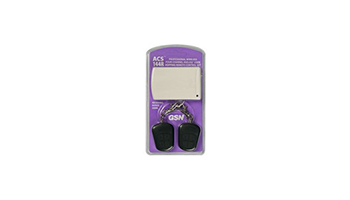

Relay module with remote control ACS 146R



KEELOQ variable code remote control relay module. Four independent relays with NO/NC contact DC30V/1.0A; DC60V/0.3A; AC125V/0.5A. Programming different modes for the four relays. Maximum range in line of sight 500 meters. Operating frequency 433.92MHz, Power ≤10mW. Memory for 330 remotes. Built-in tamper. Operating modes: 1. Pulse: pressing a button - 1 second pulse; 2. SwitchOnPeriod: Programmable trigger time when button is pressed 1-300s; 3. Switching: Each button press changes the state of the relay; 4. Holding the HOLD button activates the relay, but not more than 25s; 5. Panic 30 min memory. Power supply: DC12-24V/72mA. Operating Temp: -20°~50°C. Dimensions: 85x55x20mm. Set of 2 Tx4RC-10 four-button remotes.



Weight 0.146 Kgr
