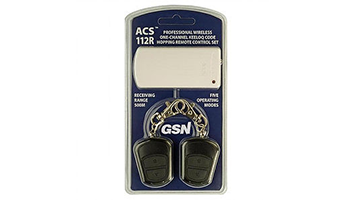

Relay module with remote control ACS 112R



Remote control relay module with KEELOQ variable code. One relay with NO / NC contact DC30V / 1.0A; DC60V / 0.3A; AC125V / 0.5A. Maximum range in direct visibility 500 meters. Operating frequency 433.92MHz, Power ≤10mW. Memory for 330 remotes. Built-in tamper. Operating modes: 1. Pulse: pressing a button - 1 sec pulse; 2. SwitchOnPeriod: Programmable activation time at the push of a button 1-300s; 3. Switching: Each press of a button changes the state of the relay; 4. HOLD hold button activates the relay, but not more than 25s; 5. Panic 30 min memory. Power supply: DC12-16V / 27mA. Operating temp: -20 ° ~ 50 ° C. Dimensions: 85x40x20mm. Set with 2 two-button remote TxRC-09. 0.130 Kgr
