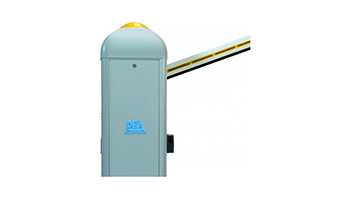

Parking barrier STOP24NET/V 24V



Fast electromechanical parking barrier for heavy load. Opening time 2.7s, up to 500 cycles / hour. Holds shoulder up to 4m long. Modes: trigger, with automatic closing. Adjusting the closing / opening speed. Adjusting the degree / angle of opening. Up to 1500 cycles per day. Manual release option. Option to turn left / right. Vandal-resistant steel body, secret lock. Built-in NET24 intelligent controller with four-character programming displays, Programmable and user-friendly via NET-NODE - Bluetooth converter and iOS / Android mobile application. Interfaces: 6x Programmable inputs for Photocells / EM detectors and more. expandable up to 12, 2x AUX DC24V / 200mA outputs, 2x Lamp programmable DC24V / 15W outputs, 1x AUX programmable DC24V / 5W output. Operating temp: -20ºC ~ 50ºC. Weight 79kg, dimensions: 423x284x1288mm. Power supply 230Vac / 120W. Brushless DC motor with working e.g. 24Vdc. Built-in 433MHz variable code receiver and 100 DU memory, built-in emergency power for 2x 4.5Ah / 12V batteries. STOP4 / N compatible arm. 72 kgr
