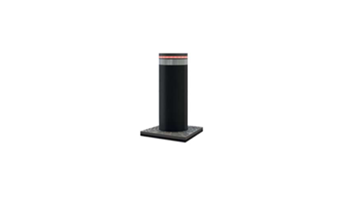

Electro-hydraulic parking bollard ROCK/CABLE



Electro-hydraulic parking bollard. Climb time 6s, harvest time 5s, in emergency mode 1.5s. 300 cycles per day (option 2000 cycles). Height 700mm above the ground, depth of the underground cylinder 1025mm, diameter of the movable cylinder 275mm. Magnetic limit switches. LED and sound indication and reflective tape. Powder coated steel cylinder. Possibility for manual collection. Operating temp: -15oC ~ 50oC (-25oC ~ 50oC with additional heater). Weight 130kg. Power supply 230Vac / 400W. Degree of protection IP67. Connecting cable 15m

FG16 7x1.5 + 10x0.5.
