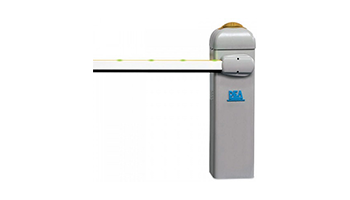

Parking barrier  PPASS24NET/VR 4m



Electromechanical fast parking barrier for heavy loads. Opening time 2.8s, 240 cycles / hour. Holds shoulder up to 4m long. Modes: trigger, with automatic closing. Adjusting the closing / opening speed. Up to 800 cycles a day. Manual release option. Option to turn left / right. Vandal-resistant steel body, secret lock. Built-in NET24 intelligent controller with four-character programming displays, Programmable and user-friendly via NET-NODE - Bluetooth converter and iOS / Android mobile application. Interfaces: 6x Programmable inputs for Photocells / EM detectors and more. expandable up to 12, 2x AUX outputs with total DC24V / 200mA output, 2x Lamp programmable outputs with DC24V / 15W output, 1x AUX programmable output with DC24V / 5W output. Operating temp: -20ºC ~ 50ºC. Weight 41kg, dimensions: 322x229x1162mm. Power supply 230Vac / 105W. Working e.g. 24Vdc. Built-in 433MHz variable code receiver and 100 DU memory, built-in emergency power for 2x 4.5Ah / 12V batteries. PASS4 compatible arm. 60 Kgr
