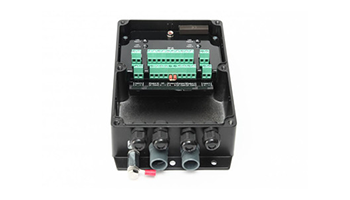

Forteza Tribo-S2 controller



Central controller for TRIBO system. Support 2 zones each up to 300m for the sensor cable and 300m for the connecting cable. Sensitivity setting and trigger method. Detects deformation and/or vibration. 2 relay outputs. Minimum distance of passing cars 1.5m (in deformation mode), minimum distance from railway lines 15m (in deformation mode). Power supply - DC10~28V/25mA. Suitable for outdoor installation - IP55. Operating temperature -40º~50ºC. Dimensions: 280x170x80mm. RS485 output for connection to a computer (an RS-BL converter is required). Free setup software.



Weight 3 Kgr
