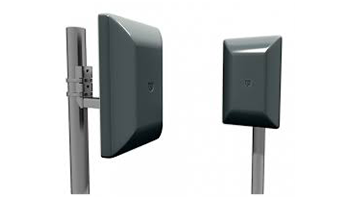

Forteza Set of microwave barriers FMC10/100



Set of microwave barriers for outdoor installation. Range up to 10~100m. Protection against false alarms caused by rain, snow, fog, small animals. RS485 port for fine-tuning via Android/PC (RS-BL converter required), possibility of quick tuning without PC. Adjustable sensitivity and detection speed. Relay alarm output. Operating frequency 10.525GHz, 4 frequency channels. Recommended mounting height 0.85m, detection zone at a maximum length of 100m: width - 3m, height - 1.6m. Detection area crossing speed 0.1~10m/sec. PVC housing with UV protection and degree of protection IP55. Power supply 10~30VDC/Tx10mA,Rx35mA. Operating temperature -40o~65oC. Dimensions: 207x133x50mm. Kit with stand and setup software.



Set of microwave barriers for outdoor installation FMC 10

Mobile app for setup

Possibility of remote adjustment via Bluetooth

A reliable way to implement perimeter security

Insensitive to atmospheric influences

Excellent immunity to the effects of animals and vegetation

Range up to 200m

Protection against false alarms caused by rain, snow, fog, small animals

Operating frequency 9.4GHz

Diameter of the blocking cylinder 2 – 5 m

RS485 communication



FORTEZA FMC 10 (50m) - from 5 m to 50 m

FORTEZA FMC 10 (100m) - from 10 m to 100 m

FORTEZA FMC 10 (200m) - from 10 m to 200 m



Weight 5.050 Kgr
