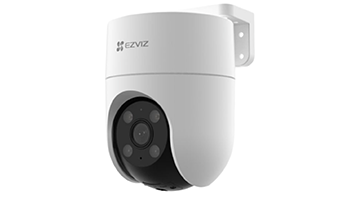

EZVIZ CS-H8C 8MP IP PTZ Wi-Fi camera



Ezviz IP PTZ Wi-Fi camera, 1/2.8" Progressive Scan CMOS,4mm@ F1.6, viewing angle 89° (Horizontal), Pan: 350°, Tilt: 80°, H.265, 30fps, 2304 × 1296, Two-way talk, Light and Siren, IR up to 30m, micro SD (Max. 512GB), RJ45 x1, IP67



Design and features

Camera type IP Camera

Sensor resolution 3 Mpixel

Focus Range 4mm

Matrix type 1/2.8in CMOS

Max. video resolution 2304x1296

Maximum frame rate 30 fps

Wi-Fi interface

Horizontal viewing angle 89°

Vertical Viewing Angle 46°

Diagonal Viewing Angle 104°

Features of Night Vision Internet Camera

Tilt

Pan

IR Cut Filter

Built-in Siren

WDR

3D DNR

Human Detection

Password Protection

Two-way Talk

Anti-Flicker

Dual-Stream

Heartbeat

Mirror Image

Watermark

H.264 format supported

H.265

Degree of protection IP67

Interfaces

LAN 1 (RJ-45)

Network specifications

Supported data exchange protocols Fast Ethernet/Ethernet

Compatibility with IEEE 802.11b network standards

IEEE 802.11g

IEEE 802.11n

Other features

Built-in devices Card reader (Micro SD)

Exterior color White

Included accessories Power adapter

User manual

Screws

Certificates CE / FCC / UKCA / UL / WEEE / RoHS / REACH

Terms of use

Maximum ambient temperature 50 °C

Minimum ambient temperature -30 °C

Max. ambient air humidity 95 %

Power

Power type Power adapter

Maximum input current 1 A

Maximum input voltage 12 V

Maximum power consumption 12 W

Dimensions & weight

Depth 129.19 mm

Height 149.75 mm

Width 100.05 mm

Nominal weight 0.435 kg

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 0.74 kg

Package Weight - Net (kg) 0.435 kg

Quantity per pack 1

Carton weight - Gross (kg) 0.74 kg

Retail Packaging Net Weight Carton 0.435 kg

Retail Packaging Net Weight Plastic 0.435 kg

Packages in Carton 1

Package type With packaging
