Overview

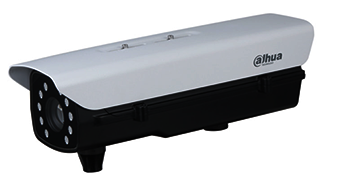

This new camera is mainly used in roadway ANPR system and red light

enforcement system, devoting to Front-end License Plate Recognition.

More than 98% vehicle capture rate, up to 95% ANPR rate and its

capture speed can reach 200km/h, covering at most 2 lanes!



Technical Specification



Technical Data



Image Sensor:  1/1.8 inch Global Shutter CMOS

Max. Resolution: 3 MP, 2048 (H)×1536 (V)

Lenses:  Motorized/ Auto Iris(DC)

Focal Length: 10 ~ 40mm

ANPR Distance: 18 ~ 25 m

Video Frame: Up to 25 fps

Camera Speed Shutter:  1/50 ~ 1/100000

Day/Night: Auto ICR (with polarized lens and infrared filter)

Lamp: White /IR light

White Balance: Auto/Manual

Gain Control: Auto/Manual

Noise Reduction: 3D



Network



Interoperability CGI, SDK, Onvif

Web Viewer IE8,IE9,IE10,IE11,Chrome V33, V41

Protocol IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS



Intelligence



License Plate Recognition (LPR): Embedded

Vehicle Detection: Supports vehicle video detection with high detection rate; supports vehicle direction detection

Detection Model: Supports Video detection or radar detection

Vehicle Data Structuring: vehicle brand, vehicle size, vehicle color detection and etc.

Vehicle Size Detection: Supports 11 vehicle sizes detection:large bus, heavy truck, medium truck, sedan, minivan, light truck, SUV, MPV, medium bus, pick-up and minicar.

Vehicle Color Detection: Supports 11 colors detection(daytime):white, black, blue, red, yellow, green, pinkish purple, gray,brown, orange and silver.

Violation Detection: Overspeed, red light running, etc.

Flow Detection: Statistical data of each lane: time, date, statistical period, lane, traffic flow, occupancy, headway, average speed, queue length, vehicle type

Video Tamper-proofing:  Video/Image with watermark tech and check function



Interface



Ethernet: 2 × 100/1000M Ethernet port

Extra Interface:  2 × USB and 1 ×FD Card

RS485: 2

RS232: 4

Alarm I/O:  2 × Alarm out / 4 × Alarm in, 7 × Optical coupling output



Power,Size,Environment



Power: AC110~220V, Max. 30W

Working Environment: Temperature -40°C~+80°C, Humidity 10%~90%

Dimensions: 544mm × 195.5mm × 171.5mm

Ingress Protection: IP67
