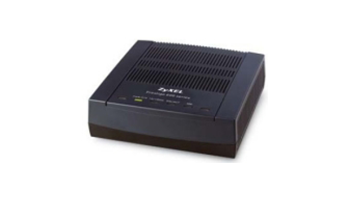

ZYXEL P-660R-T1 V3S ADSL2+ OVER PSTN GATEWAY



• Supported Connection: ADSL over PSTN

• Communication Ports: 1x ADSL RJ-11, 1x RJ-4510 / 100M Auto MDI / MDIX

• ATM Support: 8 PVCs SupportM, RFC 1483/2684 Multiple Protocol over AAL5, VC and LLC Multiplexing, Traffic Shaping UBR, CBR, VBR-nrt, ATM Forum UNI 3.1 / 4.0 PVC, I.610 OAM F4 / F5 loop-back , AIS, and RDI OAM cells

• PPP Support: PPP (RFC 1661), PPP over AAL5 (RFC 2364), PPP over Ethernet (RFC 2516), PAP Authentication (RFC 1334), CHAP Authentication (RFC 1994)

• Routing Support: IEEE 802.1d Transparent Bridging, 802.1q Pass-through Bridge, Up to 256 MAC Learning Address, IP Routing: TCP, UDP, ICMP, ARP, RIP1v1 and RIPv2, Static Route, IP Multicast IGMP v1 / v2, IP Policy Route

• IP Management: SUA (Single User Account), Multi-NAT (Network Address Translation), Multimedia Support, VoIP SIP Pass-through, VPN (IPSec, PPTP, L2TP) Pass-through, DHCP Server / Relay / Client, IP Alias , DNS Proxy, Dynamic DNS, UPnP Support

Dimensions: 111 (L) x 106.5 (D) x 35 (H) mm

Weight: 172 grams
