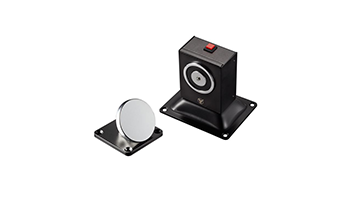

YLI YD-605 Floor And Wall Mount Door Holder
YD-605 is a wall mount and floor mount door holder.which adopts low power consumption, that makes it more environment friendly and more durable. Professional anti-residual magnetism design ensures highest security. the fire door wil be released automatically when fire alarms. The build-out release button for testing and build-in MOV is the special Component to reverse current protection.
-
Dimensions: L116xW93xH118(mm)
-
Holding Force: 50kg(110Lbs)
-
Voltage: DC24V+10%(12VDC need order)
-
Current Draw: 12V/180mA 24V/70mA
-
Optional: Manual door release button
-
Suitable for: All Kinds of Single & Double Smokeproof Door
-
Surface Temp: ≤+20
-
Operating Temp: -10~+55℃(14-131F)
-
Suitable Humidity: 0~90%(relative humidity)
-
Finishes for Shell: High Temperature Paint and Environmental Protection
-
Finishes for Armature: Zinc
-
Weight: 1.4kg
