Xtralis OSID-INST Kit for installed and configuration and test of OSID detectors, laser positioning tool, test filter, USB cable for configuration with PC



Xtralis OSID OSID-INST Installation Kit



The OSID Installation Kit (OSID-INST) is used in commissioning and maintaining the correct operation of the OSID Smoke Detector.



When the OSID system is installed over very large distances and in brightly lit areas, it may be difficult to see the output laser from the OSID Laser Alignment Tool when commissioning the system. To aid in the alignment of the Imager and Emitter, the Commissioning Aid (reflector) is provided. The reflector should be attached to the opposing unit that is not being aligned. For example, if the Emitter is being aligned, the reflector should be attached to the front cover of the Imager. Returning light to the user, off the reflector, from the laser alignment tool will be brighter and make it easier to determine if the unit being commissioned has been aligned correctly.

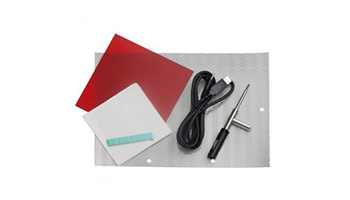

The kit includes:



OSID Installation and Maintenance Manual

OSID commissioning aid (reflector)

Blu-Tack adhesive

OSID smoke simulating test filter

OSID cleaning cloth

OSID serial PC interface cable

OSID laser alignment tool, with three LR44 button cell batteries pre-installed
