Xtralis OSI-90 OSID Multi Point Receiver linear photo smoke detector with IR & UV detection

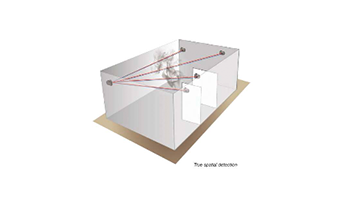

OSID Multi Point Receiver linear photo smoke detector with IR & UV detection. Supports up to 7 Emitters. Range 12-68m (with OSE-HPW emitter). CMOS sensor with a horizontal angle of 80°. For conventional or via I/O module for addressable systems. Diagnostics and configuration with software or built-in DIP switches. Sensitivity adjustment. LED indication. Memory for 10,000 events. Interfaces: 1x No/NC DC30V/2A Fire, 1x No/Nc DC30V/2A Fault, 1x Heating output DC24V/16mA, 1x Reset input. Power supply: DC20~30V/8mA. Operating Temp: -10°~55°C. Housing with degree of protection IP44 (IP66 with OSID-EHI) and dimensions: 208x136x96mm. EN standards: EN54-12, Vds, UL. Compatible emitter OSE-SPW, OSE-SP-01, OSE-HPW, OSE-HP-01.
