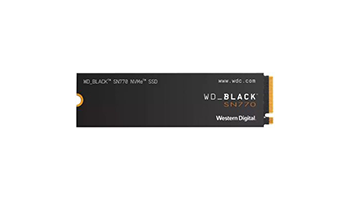

WESTERN DIGITAL WDS500G3X0E WD Black SSD WD Black (M.2, 500GB, PCIe Gen4)
Disk configuration
Location of the Plug-in Module device
Form factor M.2
Data storage device capacity 500 GB
PCIe NVMe 4.0 x4 data channel supported
NAND Flash memory technology
Included accessories Documentation
Productivity
Maximum Random Read Rate 460000 IOPS
Maximum Random Write Rate 800000 IOPS
Maximum Sequential Read Rate 5000 MB/s
Maximum Sequential Write Rate 4000 MB/s
Total Bytes Written (TBW) 300 TB
Terms of use
Maximum ambient temperature 85 °C
Minimum ambient temperature 0 °C
Max. ambient temperature in off mode 85 °C
Min. non-operating ambient temperature -40 °C
Dimensions and weight
Width 22 mm
Height 2.38 mm
Depth 80 mm
Nominal weight 5.5 g
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 0.01 kg
Package Weight - Net (kg) 0.0055 kg
Quantity per pack 1
Carton weight - Gross (kg) 0.01 kg
Retail Packaging Net Weight Carton 0 kg
Retail Packaging Net Weight Plastic 0 kg
Packages in Carton 1
Package type Box
